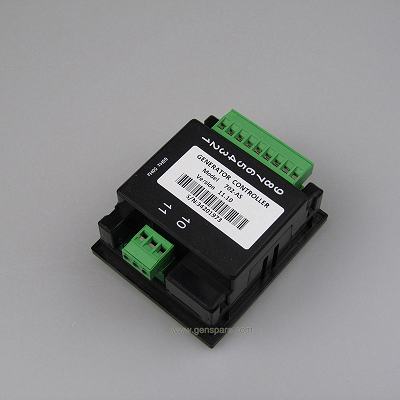

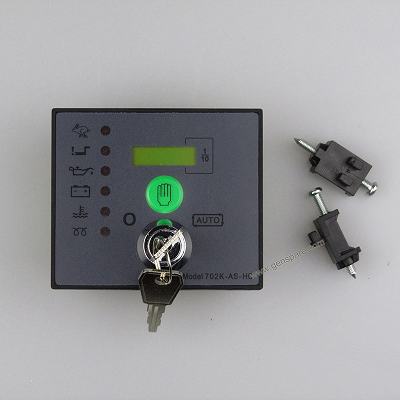

DSE Deep Sea Generator Controller DSE702 DSE702AS

DSE701,DSE702 Product Specification Download.pdf

MANUAL START CONTROL MODULES

High quality replacement model for DSE702AS Deep Sea Controller with reasonable price!

Manual Start Module: DSE702MS

Auto Start Module: DSE702AS

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

How to choose a suitable Generator Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

The DSE702 Generator Controller offers an excellent range of engine monitoring and protection features. The Generator Manual Start Control offers inputs to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input. Auto Start versions also include an input option for a start signal from a remote location.

When the Generator Manual Control detects any of the above faults it will light the warning LED on the front panel.

The Deep Sea DSE702AS Controller also has the capability to monitor battery charging by utilizing the WL terminal on the charge alternator. On detecting a battery charging fault, it will light the warning LED on the front panel.

KEY FEATURES of Generator Controller Deep Sea DSE702

• Manual start and remote start versions

• Remote start input (auto start version only)

• Auxiliary shutdown input (Manual start version only)

• Engine monitoring and protection

• LED indication

• Engine pre-heat

• Front panel mounting

KEY BENEFITS of DSE Controller DSE702AS

• Multiple engine parameters are monitored simultaneously

DC PROVIDE

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DropOUTS

Able to survive 0 V for 50 mS, providing provide was at least 10 V before dropout and provide recovers to 5 V. This is achieved without the need for internal batteries.

OUTPUTS of DSE702

START

Solid state 1.2 A negative grounding terminal

RUN

Solid state 1.2 A negative grounding terminal

PRE-HEAT

Solid state 1.2 A negative grounding terminal

GENERATOR

VOLTAGE RANGE

15 V - 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz

DIMENSIONS

DSE702 OVERALL

72 mm x 72 mm x 38 mm

2.8” x 2.8” x 1.5”

Excludes key switch

DSE702 PANEL CUT-OUT

68 mm x 68 mm

2.7” x 2.7”

MAXIMUM PANEL THICKNESS

8 mm
