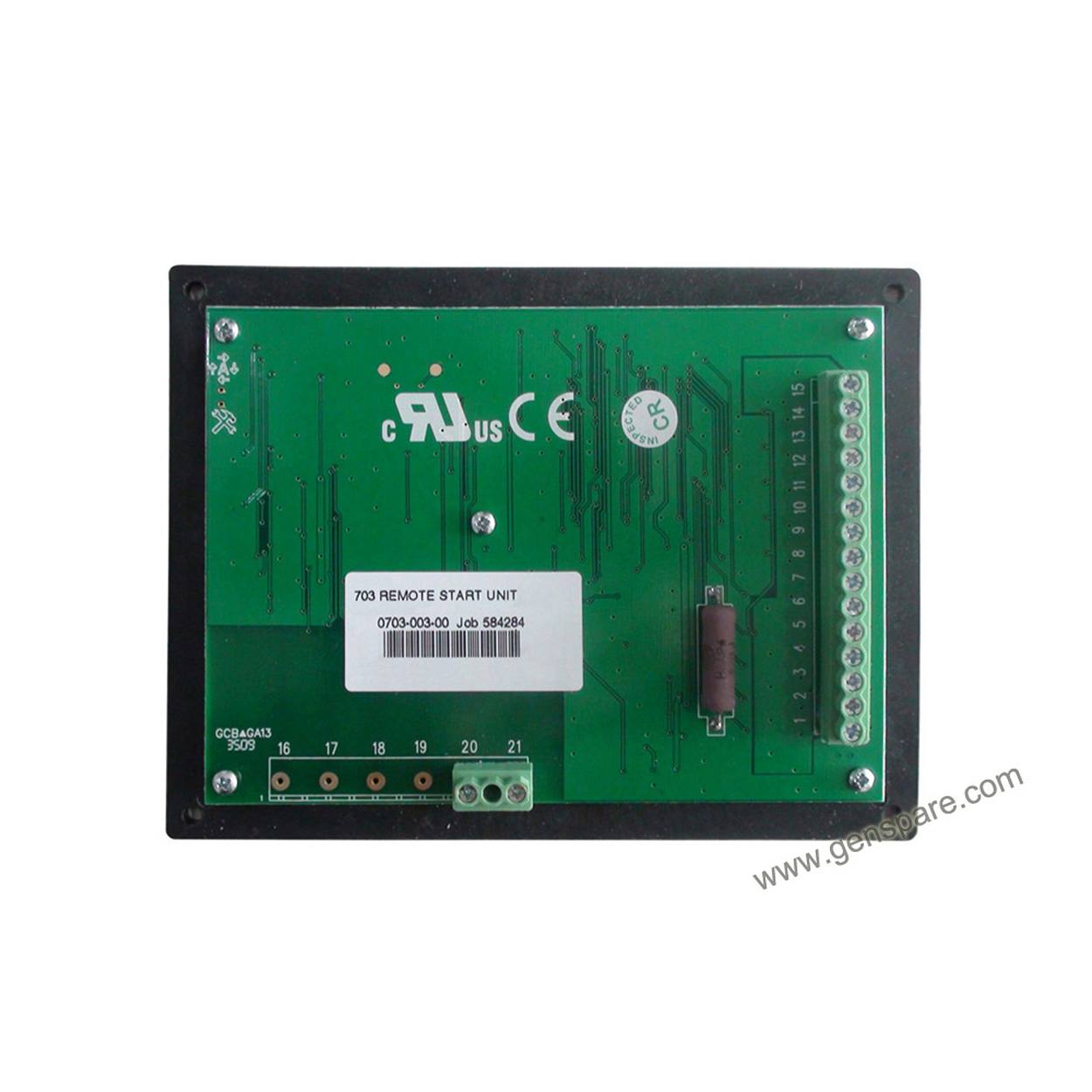

Deep Sea DSE 703 Generator Controller DSE703

DSE703 Product Specification Download.pdf

AUTO START CONTROLMODULES

High quality replacement model for Deep Sea Generator Controller DSE 703 with reasonable price!

DSE5110, DSE5120, DSE5210, DSE5220, DSE501K, DSE701, DSE702, DSE703, DSE704, DSE705, DSE710, DSE720, DSE810

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

How to choose a suitable Generator Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

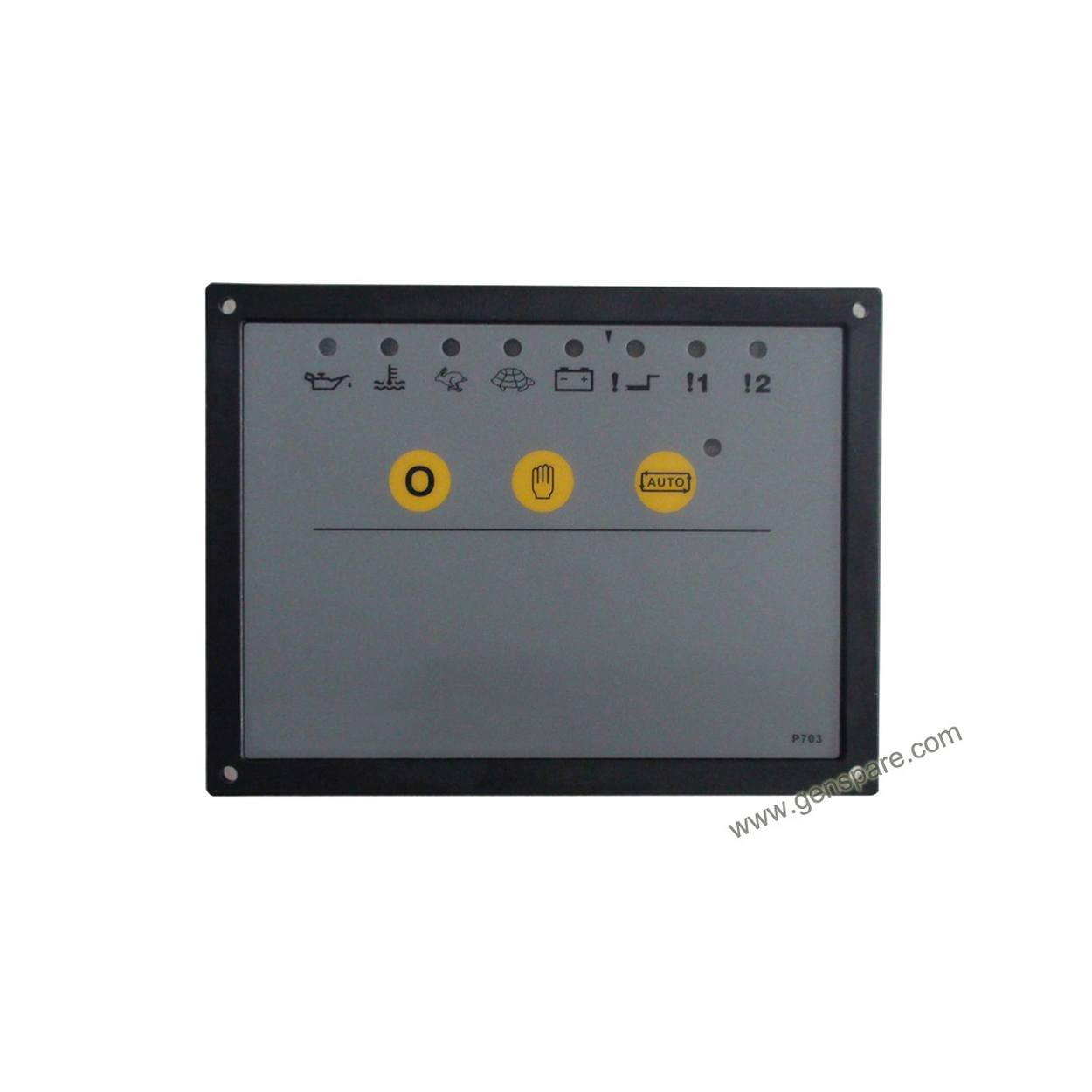

The Deep Sea DSE703 Generator Controller is an Automatic Start Control Module that offers an excellent range of engine monitoring and protection features.

The module has been designed to monitor over speed, under speed, high engine temperature, low oil pressure, battery charge fail and fail to start.

The DSE 703 Generator Controller also has two configurable auxiliary inputs and a configurable engine pre-heat timer. When the module detects a fault condition it automatically shuts down the engine, indicating

the exact fault via LED.

FEATURES of Generator Controller DEEP SEA 703

• Manual start

• Automatic start

• Engine pre-heat

• Engine monitoring and protection features

• Protected Solid State (PSS) outputs

• Front panel mounting

• Front panel programming

• Tamper proof engine hours counter

• Remote start

• LED indicators

• Configurable inputs

• Configurable timers

• Configurable outputs

• Engine exercise mode

BENEFITS of Generator Controller DSE703

• On-site module configuration to match user requirements

• Hours counter provides accurate information for monitoring warranty periods

• Multiple engine parameters are monitored simultaneously

CONFIGURATION

The modules can be configured to match user’s individual parameter settings. Configuration mode is accessed via the switch at the rear of the module. Once in configuration mode the AUTO-LED

flashes rapidly.
