DSE Deep Sea 5110 Auto Genset Controller DSE5110

GENSET AUTO START MODULE

High quality replacement model for Deep Sea DSE5110 Genset Controller with reasonable price!

New Modules: DSE6110, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320

Old Modules: DSE501K, DSE701AS, DSE701MS, DSE702AS, DSE702MS, DSE703, DSE704, DSE705, DSE710, DSE720, DSE810, DSE5110, DSE5120, DSE5210, DSE5220

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

 How to choose a suitable Auto Genset Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

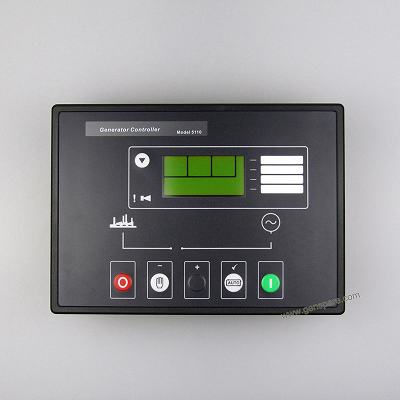

The Deep Sea 5110 Genset Controller is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.

DSE 5110 Genset Controller has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.

Packing Size: 290mm*180mm*65mm

Shipping Weight: 1KG

Application: >10 KW gas & diesel generator started with battery

FEATURES of Deep Sea Genset Controller DSE 5110

• Automatic start

• Automatic load transfer

• Configurable inputs

• Configurable outputs

• Configurable alarms & timers

• Digital inputs

• Analogue inputs

• Back-lit character LCD display

• Engine protection

• Front panel mounting

• Icon based fault diagnostics

• PC configurable

• Front panel programming

• Remote monitoring

• LCD alarm indication

• LED alarm indication

BENEFITS 5110 Auto Genset Controller

• In-built engine diagnostics removes the requirement for service equipment

• License free PC software

• Modules help to improve the life cycle of engine starter motors

• On-site module configuration

• User-friendly set-up and button Layout

OPERATION for DSE Genset Controller DSE5110

The DSE5110 is operated using the front STOP, AUTO and MANUAL push buttons. An additional

push button on both modules allows the user to scroll through the LCD instrumentation display.

CONFIGURATION

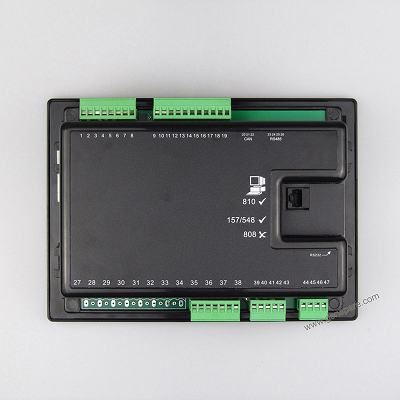

The module DSE5110 can be configured using the front panel buttons or the DSE810 interface and PC software.

INPUTS & OUTPUTS

Analogue inputs are provided for oil pressure and engine temperature. These connect to conventional engine mounted resistive sender units to provide accurate monitoring and protection facilities. The modules can also be configured to interface with digital switch type inputs for low oil pressure and high engine temperature shutdowns.

Relay outputs are provided for fuel solenoid output, start output and three additional configurable outputs. A range of different functions, conditions or alarms can be selected for the three configurable relay outputs. These outputs are fed from the permanent plant provide.

INSTRUMENTATION

The DEEP SEA 5110 provide advanced metering facilities, displaying the information on the LCD display. The information can be accessed using the display scroll push buttons located next to the LCD display.

Generator Volts L1-N, L2-N, L3-N

Generator Volts L1-L2, L2-L3, L3-L1

Generator Amps L1,L2, L3

Engine Speed RPM

Generator Frequency Hz

Engine Oil Pressure (PSI & Bar)

Engine Temperature (℃ & ℉)

Plant Battery Volts

Engine Run Hours
