DSE Deep Sea 5220 AMF Generator Controller DSE5220

Generator Controller DSE5220

Deep Sea 5220 Generator Controller



introduction

Warranty: 1 Year

Gross Weight: 1 kg

Stock Status: In stock

Generator Type: Diesel or Gasoline

Part No. : DSE5220

Replaced Brand: Deep Sea / DSE

Controller Type: Genset Auto Controller

Software: Compatible with DSE

Function: DSE 5220 Controller

Usage: Deep Sea Controller DSE5220

Compatible with: DSE Controller DSE5220

Product Name: Deep Sea 5220 Generator Controller

Language: English

Compatible Gensets: Cummins,Perkins,Deutz,Caterpillar, Aksa, Volve, Marelli, Mecc Alte, Marathon, WeiChai, ShangChai, YANAN, Kipor and many more Brands

DSE Deep Sea 5220 AMF Generator Controller DSE5220


DSE5210, DSE5220 Product Specification Download.pdf



AUTO START MODULES

High quality replacement model for Deep Sea 5220 Auto Genset Controller with reasonable price!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.



How to choose a suitable Generator AMF Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII


The DSE 5220 AMF Generator Controller designed to automatically start and stop diesel

and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.



The Deep Sea 5220 Controller has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop, under/over generator volts,

over current, under/over generator frequency, low/high DC battery volts, low fuel alarm and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.



DSE Generator Controller DSE5220 include RS232 or RS485 communications capabilities for linking to a PC, sending SMS messages and interfacing with new and existing building management systems.



Packing Size: 290mm*180mm*65mm

Shipping Weight: 1KG

Application: >10 KW gas & diesel generator started with battery



FEATURES of Deep Sea Controller DSE5220

• Automatic start

• Automatic load transfer

• Configurable inputs

• Configurable outputs

• Configurable alarms & timers

• Digital inputs

• Analogue inputs

• Back-lit character LCD display

• Engine protection

• Front panel mounting

• PC configurable

• Front panel programming

• Remote monitoring

• RS232 or RS485 remote communications (to be specified on ordering)

• Modbus RTU

• Engine history event log

• LED alarm indication

• LCD alarm indication

• SMS messaging

• Hid till lit alarm icons

• Engine exercise mode

• Magnetic pick-up



BENEFITS

• Full integration into new and existing building management systems

• In-built engine diagnostics removes the requirement for service equipment

• License free PC software

• Modules help to improve the life cycle of engine starter motors

• On-site module configuration to match user requirements

• Remote module configuration using PC software

• Modules send SMS messages to engineers to notify specific engine problems (GSM Modem and SIM Card required)

• User-friendly set-up and button layout

OPERATION

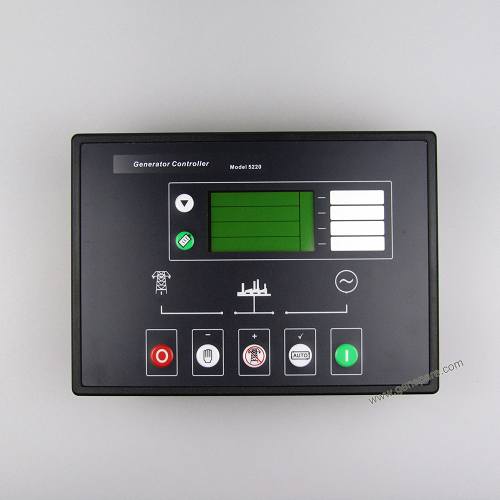

DSE5220 is operated using the front STOP, AUTO and MANUAL push buttons.

CONFIGURATION

The modules can be configured using the front panel buttons or by using the DSE810 interface and PC software.



DSE5220 DEEP SEA AMF Controller

Generator Volts L1-N, L2-N, L3-N

Generator Volts L1-L2, L2-L3, L3-L1

Generator Amps L1,L2,L3

Generator Frequency Hz

Engine Speed RPM

Engine Oil Pressure

Fuel Level %

Engine Temperature

Plant Battery Volts

Engine Hours Run

Generator kVA

Generator Kw

Generator Cosθ



PC Software

DSE5220 Auto Start Generator Controller has the ability to be controlled, configured and monitored from a remote PC, using the DSE810 interface.
