Leroy Somer Genset AVR Card Voltage Regulator R438

R438 Product Specification Download.pdf

We have Leroy Somer AVR R438 in our regulator stock! (Replace Leroy Somer AVR RS437 Voltage Reguator)

Replacement Models: R220, R230, R250, R438, R448, R449, R450

Original Modules: D510C, R120, R129, R250, R438, R449, R450, R450M, R450T, R630, R726, R731

The Brands / Part No. here are for reference purpose only, our parts can exactly replace the original ones.

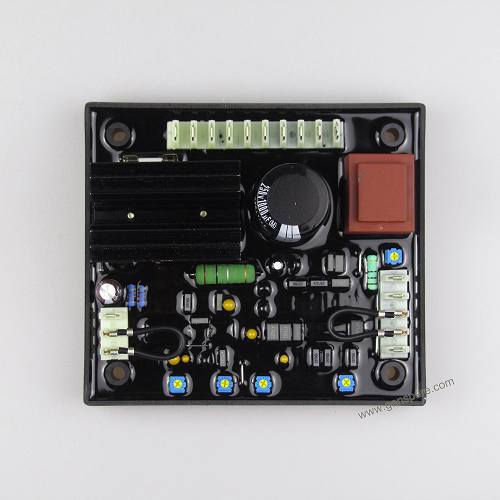

Leroy Somer R438 AVR CARD FOR SHUNT, AREP or PMG AlterNATORS

Compatible Leroy Somer Alternators:

LSA42.3, LSA43.2, LSA44.3, LSA44.2

Part Number:

Leroy Somer AVR AEM110RE017 Voltage Regulator

Leroy Somer AVR AEM110RE003 Voltage Regulator

SDMO AVR 330410127 Voltage Regulator

SDMO AVR 330410164 Voltage Regulator

SDMO AVR 330410334 Voltage Regulator

FG Wilson AVR 922-045 Voltage Regulator

Olympian AVR 922-045 Voltage Regulator

Leroy Somer R438 Voltage Regulator is an analog AVR. It is designed for alternators with a AREP or PMG excitation .

Leroy Somer Genset AVR R438 controls the excitation current in order to maintain the output voltage of the alternator.

AVR R438 is performant in terms of voltage regulation, simple to set , to use and is reliable.

It can run without LAM (U/f), or with LAM, selection is done by strap ST5. It is in compliance with I.E.C. 60034-1 standard and U.L. 508 / C.S.A. approved

Operation mode : Standalone

Main feature and characteristics for Leroy Somer Genset Voltage Regulator R438

- Voltage regulation : ± 0.5 %.

- U/F function (1).

- LAM function (2).

- Response time : 500 ms

- Nominal excitation current : 5A

- Maximum excitation current : 8A during 10 s.

- Provide range and voltage détection : 95 to 520 V.

- Protection : fuse 8A.

Operation conditions R438 Leroy Somer Genset AVR

- Operating temperature range : - 40° C à + 70° C.

- Storage temperature range : - 55° C à + 85° C.

- Hygrometry : 98%.

- Maximum choc : 9 g on 3 axis..

- Vibrations : less than 10 Hz , 2 mm peak magnitude.

From 10 Hz to 100 Hz : 100 mm/s, below 100 Hz : 8g.

Optional modules compatible

- R 731 : three phase voltage sensing.

- R 734 : 3-phase current and voltage sensing for parallel operation

- R 726 : regulation system changed to “4 - function”

Connexion and setting

Settings are done through the R438 Leroy Somer AVR

- Potentiometer P1 : Quadrature droop setting.

- Potentiometer P2 : Voltage setting.

- Potentiometer P3 : Stability setting.

- Potentiometer P5 : Excitation ceiling setting.
