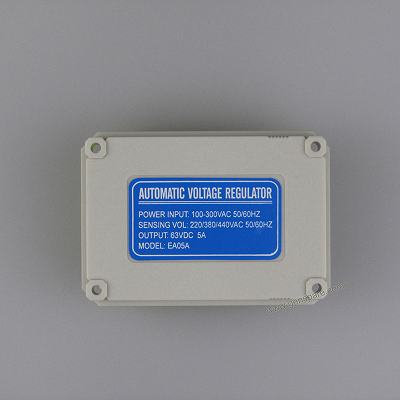

Kutai Genset AVR EA05A Automatic Voltage Regulator

EA05A Product Specification Download.pdf

We have Kutai EA05A AVR in our regular stock!

The Brands/ Part No. here are for reference purpose only, our parts can exactly replace the original ones.

INTRODUCTION of KUTAI AVR EA05A

Sensing Input of Kutai Genset AVR EA05A

Voltage 220 / 380 / 440 VAC, 1 phase2 wire DIP switch selectable Frequency 50 / 60 Hz, DIP switch selectable Power Input: Voltage 100 ~ 300 VAC, 1 phase 2 wire

Output Voltage Max. 90 VDC @ 240 VAC input Current  Continuous 5A          Intermittent 7A for 10 sec Resistance Min. 15 ohm Max. 100 ohm

Voltage Regulation for Kutai EA05A Automatic Voltage Regulator :  < ± 0.5% ( with 4% engine governing )

Voltage Build-up: Residual voltage at AVR terminal > 5 VAC

Thermal Drift: 0.03% per C change in AVR ambient

External Volts Adjustment: ± 7% with 1K ohm 1 watt trimmer

EMI Suppression: Internal electromagnetic interference filtering

Unit Power Dissipation: Max. 8 watt Under Frequency Protection (Factory Setting) 60 Hz system presets knee point at 55 Hz 50 Hz system presets knee point at 45 Hz Soft Start Ramp Time : 3 sec. Dimensions: 101mm L * 69mm W * 47.5mm H Weight: 183g ± 2%
