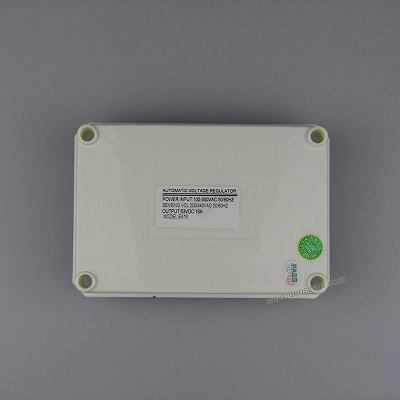

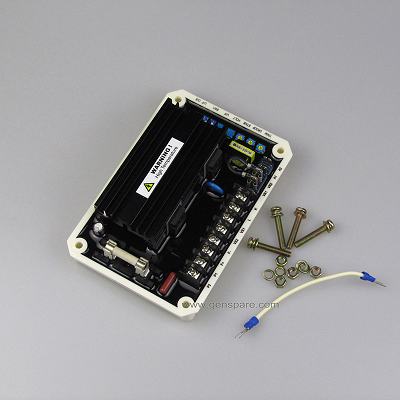

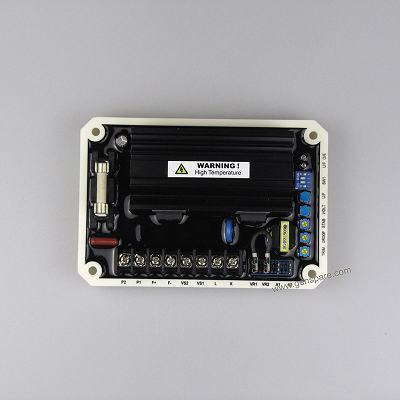

Kutai Automatic Voltage Regulator AVR EA16A

AVR EA16A

EA16A AVR



introduction

Warranty: 1 Year

Gross Weight: 0.5 kg

Stock Status: In stock

Part No. : EA16A

Replaced Brand: Kutai

Function: Kutai AVR EA16A

Usage: Kutai EA16A AVR

Compatible with: Kutai Voltage Regulator

Product Name: Kutai Automatic Voltage Regulator

Kutai Automatic Voltage Regulator AVR EA16A



EA16 Product Specification Download.pdf

EA16-400Hz Product Specification Download.pdf

EA16-400Hz Manual Download.pdf

EA16 Manual Download.pdf


Universal 16 Amp 1/2 Wave Self Excited Automatic Voltage Regulator Can Be Used In Parallel Operation

Compatible with Mecc Alte UVR6, Marelli Motori M40FA640A-MARK I and Caterpillar AVR



We have Kutai EA16A AVR in our regular stock!

The Brands/ Part No. here are for reference purpose only, our parts can exactly replace the original ones.

 2 Versions of Kutai EA16A AVR Available: EA16A 50/60Hz , EA16A 400Hz



Features of Kutai Automatic Voltage Regulator EA16A

_ Voltage Regulation < ±0.5%

_ Suitable For Brushless Type Generator Sensing Input 170~510 VAC

_ Can Be Used In Parallel Operation

_ 16 ADC Current Output

_ Suitable Frequency 50/60 Hz

_ Soft Start Voltage Ramping

_ Load CT Current Compensation, Analogue Voltage Input



AVR Control Function for Kutai AVR EA16A

VOLT Voltage Adjustment

STAB Stability Adjustment

U/F*1 To Set the U/F Knee Point

DROOP To Adjust Droop

TRIM Analogue Input Adjustment

*1 U/F : Under Frequency protection



Physical Specification

Dimensions 156.0 (L) x 106.0 (W) x 43.0 (H) mm

Weight 450 g ±2%
