Voltage Regulator GAVR AVR 25A AVR-25A GAVR-25A

We have AVR-25A AVR in our regular stock!

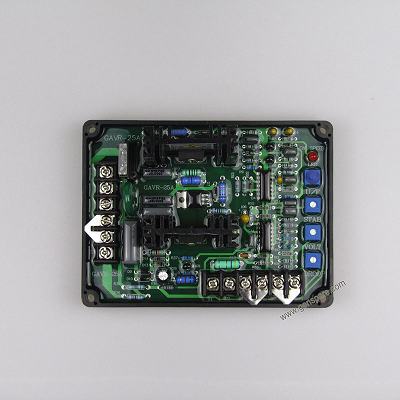

GAVR-25A Voltage Regulator is Universal 25 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.

Specifications for Voltage Regulator AVR-25A

*Sensing Input Voltage:220/400VAC,1phase 2wire

*Power Input Voltage :180~240VAC, 1phase 2wire

*Output:

Voltage:Max.90VDC@240VAC input

  Current Continuous 6A

  Intermittent 15A for 10SEE

  Resistance Min.10Ω Max 100Ω

 *Voltage Build-up: esidualvolts at AVR teminal >5VAC

*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer

*Unit Power Dissipation   Max.8Watt

*Under Frequency Protection 60Hz system presets knee point at 57Hz

*(Factory Settings)         50Hz system presets knee point at 47Hz
