Actuator for diesel gas gasoline generator engine

We have Actuator for generator in our Regular Stock!

You just need to provide your Engine brand and engine model number, we will choose a suitable actuator.

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

Actuator for diesel generator:

Cummins Sereis: 3408324, 3408326, 3408328

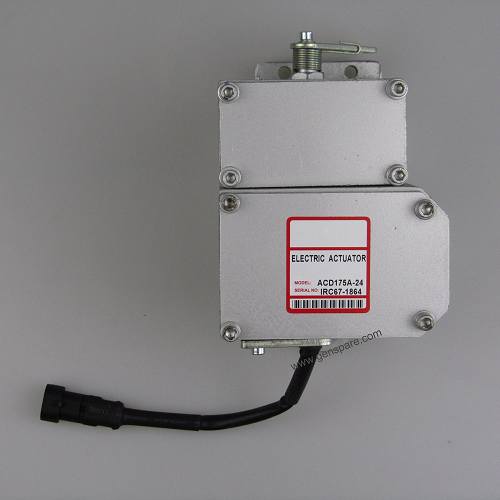

GAC Sereis: ADC120, ACD175A, ADC225

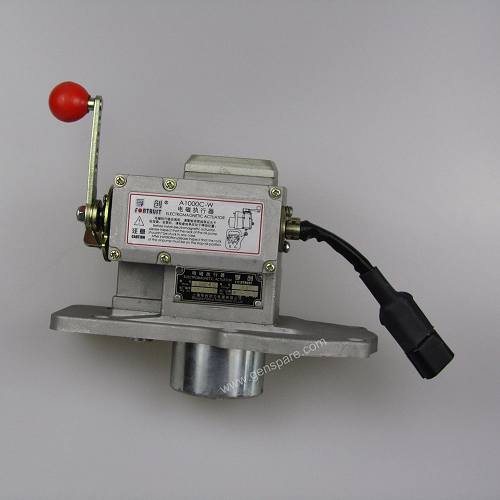

Fortrust Series: A02A, A07A, A08, A1A, A1AWL, A2A, A3A, A3B, CA2, A800, A900, A1000C-W, A1000C-F3-d1, A2000C-F3, A2000C-W, A1000B, A2000B, A4000B

YUNYI Series: YZ01A, YZ01B, YZ01C, YZ02A-P, YZ02A-D, YZ02A-M, YZ02A-KL, YZ02A-BQ. YZ02A-K, YZ02A-YI, YZ03A-M, YZ03A-PM, YZ03A-1, YZ03A-L, YZ04A, YZ05C, YZ06B, YZ07B

Compatible Engine Types:

Diesel / Gasoline

Compatible Engine Brands:

Cummins, Perkins, Deutz, Caterpillar, Aksa, Volve, Kohler, Kubota, Yanmar, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands

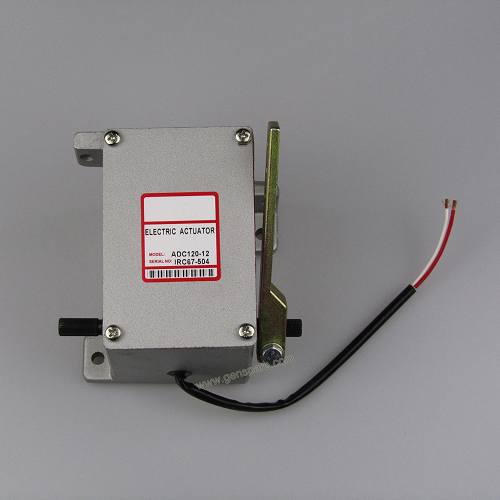

ADC120 Actuator for gas gasoline generator

• Rotary output linear torque proportional servo

• Small, low cost, low friction model

• 1.0 lb-ft of torque, 25° rotation, < 32 msec. response

• Suitable for rotary or small inline fuel pumps of small carburetors

• Ideal for fuel systems on engines up to 150 HP

Specifications of GAC ADC120 Actuator for gas gasoline engine

Performance for ADC120 Actuator for engine

   Available Torque-------------------------------------------------------Max 1.0 lb-ft (1.4 Nm)

   Maximum Operating Shaft Angular Travel----------------------- 25+-1 degree CW/ CCW

Power Input of ADC120 GAC Gasoline Genset Actuator

   Operating voltage-----------------------------------------------------12, 24 VDC

   Normal Operating Current------------------------------------------2 A at 12 VDC, 1 A at 24 VDC

   Maximum Current-Continuously Rated--------------------------6 A at 12 VDC, 3 A at 24 VDC

Environmental for ADC120-12 GAC Gasoline Actuator

   Temperature Range---------------------------------------------------  -65℉ to 200℉(-54℃to 95℃)

   Relative Humidity------------------------------------------------------up to 100%

   All Surface Finishes---------------------------------------------------Fungus proof and corrosion resistant

Physical for GAC Actuator for gasoline generator

Dimensions--------------------------------------------------------------please contact us for product catalog

Weight-------------------------------------------------------------------4.5 lbs (2.05kg), net weight

   Mounting--------------------------------------------Any position, electrical connector at the top-preferred

Reliability of Actuator for gasoline engine

   Vibration-----------------------------------------------------------------up to 20 G @ 50-500 Hz

   Testing-------------------------------------------------------------------100% Tested

Mating Hardware for GAC Actuator gasoline generator

   Connector (ADC120)-------------------------------------------------supplied with actuator

   Level----------------------------------------------------------------------LE1500-1

Rod End Bearings ( to attach a # 10-32 THD linkage rod to the lever)-------BR100 (Right Hand)

--------BR100 (Right Hand)

   Wiring Harness ADC120------------- 4 ft. harness supplied with actuator, other lengths available

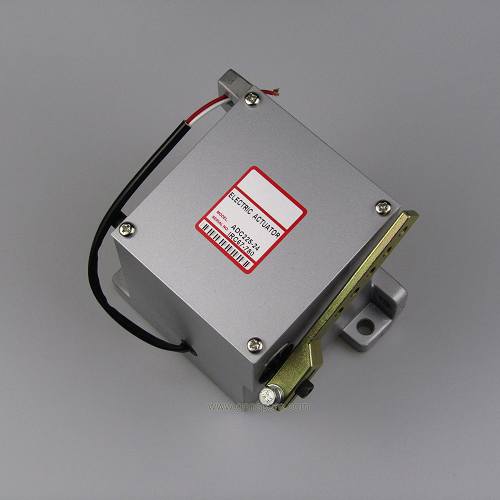

GAC ADC225-24 Actuator for diesel engine

• 2.2 lb-ft of torque, 25° rotation, < 45 msec. response

• Low cost, versatile model

• Suitable for multi-plunger fuel pumps and medium size carburetors

• Various models offer a variety of connectors and wiring harnesses,      including feedback sensor

• Outstanding reliability and performance

SPECIFICATIONS of GAC ADC225-24 Actuator diesel generator
