Actuator for Perkins Deutz Marathon Engine Genset Generator

Actuator for Deutz Engine

Actuator for Perkins Generator



introduction

Warranty: 1 Year

Stock Status: In stock

Function: Actuator for Perkins Generator

Usage: Actuator for Deutz Generator

Compatible with: Actuator for Marathon Generator

Product Name: Actuator for Perkins Engine

Actuator for Perkins Deutz Marathon Engine Genset Generator



You just need to provide your Engine brand and engine model number, we will choose a suitable actuator.

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.



Engine Actuators:

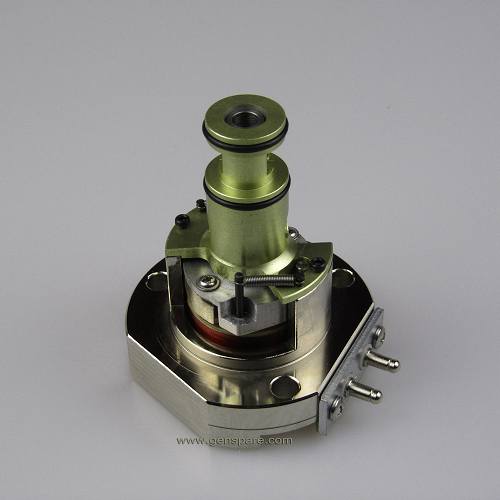

Cummins Sereis: 3408324, 3408326, 3408328

GAC Sereis: ADC120, ACD175A, ADC225

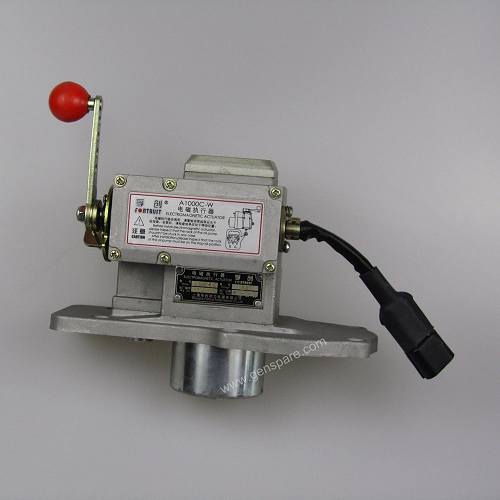

Fortrust Series: A02A, A07A, A08, A1A, A1AWL, A2A, A3A, A3B, CA2, A800, A900, A1000C-W, A1000C-F3-d1, A2000C-F3, A2000C-W, A1000B, A2000B, A4000B

YUNYI Series: YZ01A, YZ01B, YZ01C, YZ02A-P, YZ02A-D, YZ02A-M, YZ02A-KL, YZ02A-BQ. YZ02A-K, YZ02A-YI, YZ03A-M, YZ03A-PM, YZ03A-1, YZ03A-L, YZ04A, YZ05C, YZ06B, YZ07B



Compatible Engine Types:

Diesel / Gasoline



Compatible Engine Brands:

Cummins, Perkins, Deutz, Caterpillar, Aksa, Volve, Kohler, Kubota, Yanmar, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands

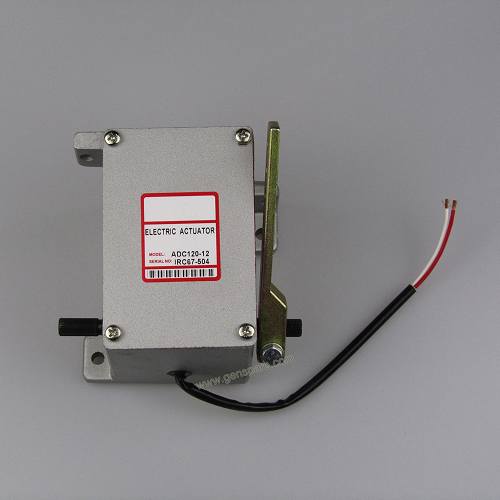

ADC120 gasoline engine Actuator

  • Rotary output linear torque proportional servo

  • Small, low cost, low friction model

  • 1.0 lb-ft of torque, 25° rotation, < 32 msec. response

  • Suitable for rotary or small inline fuel pumps of small carburetors

  • Ideal for fuel systems on engines up to 150 HP

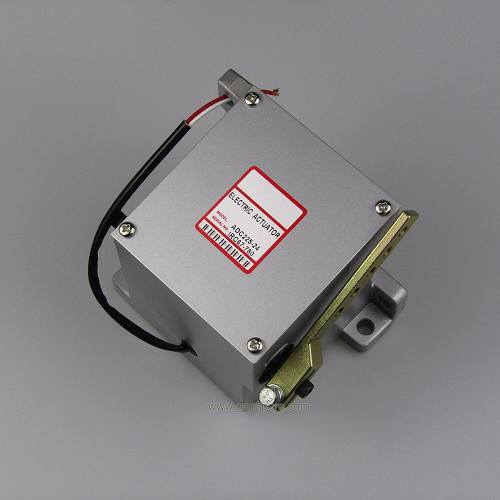

GAC ADC225-24 Actuator for Perkins Deutz Marathon Engine:

  • 2.2 lb-ft of torque, 25° rotation, < 45 msec. response

  • Low cost, versatile model

  • Suitable for multi-plunger fuel pumps and medium size carburetors

  • Various models offer a variety of connectors and wiring harnesses,      including feedback sensor

  • Outstanding reliability and performance



SPECIFICATIONS of GAC ADC225-24 Actuator for Perkins Deutz Marathon Generator

PERFORMANCE of ADC225-24 Actuator for   Perkins Genset

Available Torque:

Max1.0Lb-ft(1.4Nm)

Maximum Operating Shaft Angular Travel:

25+1° CW/CCW

POWER INPUT for ADC225-24 Actuator for   Perkins Generator

Operating voltage:

12/24V DC

Normal Operating Current:

2 A at 12V DC,1A at 24V DC

ENVIROMENTAL of ADC225-24 Actuator for   Marathon Generators

Temperature Range   for Actuator Perkins Engine :

-54 to 95°c

Relative Humidity   for Actuator Perkins Genset :

up to 100%

All Surface finishes:

Fungus proof and corrosion resistant

PHISICAL:

Weight:

3.8 kg

Mounting of Actuator   for Deutz Generator :

Any position, electrical connector at the top preferred

RELIABILITY:

Vibration:

up to 20G @50-500 Hz

Testing:

100% Tested

MATING HARDWARE:

Lever:

LE1500-2

Rod End Bearings(to attach a 12#20 HD linkage rod to lever):

BR200(Right Hand)

BR201(Right Hand)

Wiring Harness HD225:

supplied with actuator
