GAC Engine Electric Actuator ACD175 ACD175A ACD175A-24

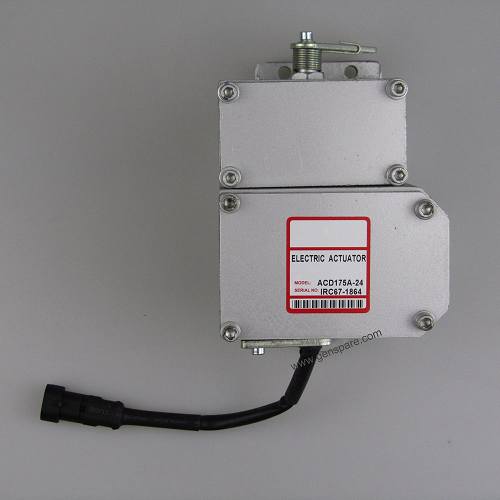

GAC Actuator ACD175A-24

GAC Actuator ACD175A



introduction

Warranty: 1 Year

Gross Weight: 3.6 kg

Stock Status: In stock

Replaced Brand: GAC

Part No. : ACD175A, ACD175A-24, ACD175

Function: GAC Actuator ACD175A

Usage: GAC Actuator ACD175A-24

Compatible with: GAC ACD175A Actuator

Product Name: GAC Actuator ACD175-24

GAC Engine Generator Electric Actuator ACD175A ACD175 ACD175A-24


ACD175A Series Product Specification Download.pdf



We have GAC Electric Actuator ACD175A-24 in our Regular Stock!

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.



GAC Generator Actuator ACD175A-24

Mounts directly to a Bosch P Series Fuel Injection Pump  Bosch P Style Pump Actuator

  • Right-hand rack

  • Capable of controlling pumps on engines up to 8-cyl.

  • Includes manual shut-off mechanism

  • Connects directly to the fuel rack bellows

  • Compact size, fast response <35msec

  • Cost effective design

  • Feedback position available

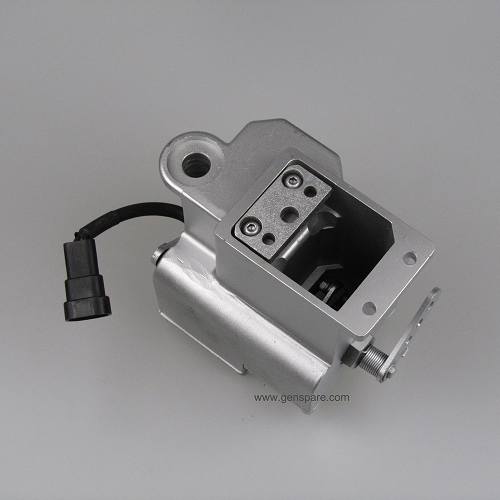

The GAC Generator Actuator ACD175A is designed to mount directly to inline fuel injection pumps, with a right hand rack in place of the mechanical governor. An optional external fuel shut off lever is provided to manually override the GAC ACD175A-24 Electric Actuator control. Also provided, as standard equipment, is

an adjustable internal maximum fuel limit.

The ACD175A-24 GAC Generator Actuator can control fuel pumps up to 8 cylinders. The GAC ACD175A Generator Actuator was designed with two isolated chambers. The upper chamber is wet with oil and contains the connection to the fuel rack and an optional manual shut off mechanism. The sealed lower chamber contains the electromagnetic components.



Performance of GAC Electric Actuator ACD175A-24

Force...........................................................................6.2 lbs (27.5N)

Operating Stroke.........................................................0.80 in (21mm)

Response Time (10-90% 2-19mm).......................................35 MSEC

Internal Sealing Pressure................................................2 bar (29 psi)

Electrical Power Input for GAC ACD175A Electric Actuator

Operating Voltage................................................12 VDC or 24 VDC

Coil Resistance..............................12 VDC Version- 1.7+/-0.2 OHMS

.....................................................24 VDC Version- 7.2+/-0.5 OHMS

Nominal Operating Current............................12 VDC Version- 4.0 A

......................................................................24 VDC Version- 2.0 A

Maximum Current..........................................12 VDC Version- 5.8 A

......................................................................24 VDC Version- 3.1 A

Environmental for GAC Electric Actuator ACD175A

Operating Temperature....................-40° to +200°F (-40° to +95°C)

Relative Humidity............................................................Up to 100%

Shock...........................................................................20g @11msec

Vibration...................................................................20g, 20-500 Hz

Agency.....................................................................RoHS Compliant

Physical

Dimensions..................................................................See Figure 2-1

Weight.....................................................................4.75 lbs. (2.2 kg)

Mounting..................................................requires BYC adapter plate

Finish Specification.................................................................ES1031

Mating Connector..................................................................EC1300

Mating Cable Harness...........................................................CH1215


HT Industrial Automation Limited
(Chongqing HT Electronic Tech. Limited)
Tel: 0086-023-85551980
Fax: 0086-023-85551980
Mobile: 0086-13452987773
Skype: htautomatic
WhatsApp: 0086-13452987773
WeChat: HT-13452987773
Email: htautomation@foxmail.com
Website: www.genspare.com
Address: No.18,BinJiang Road,
JiangJin District,Chongqing,China
