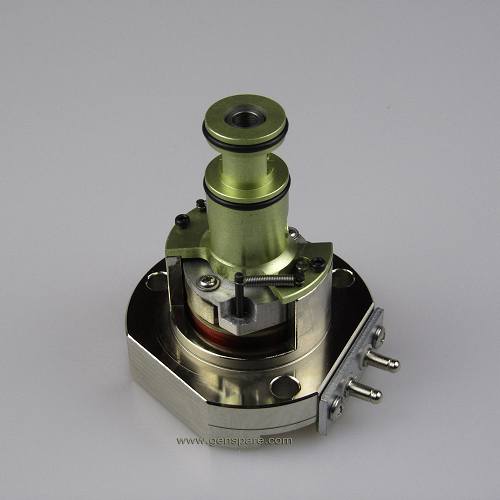

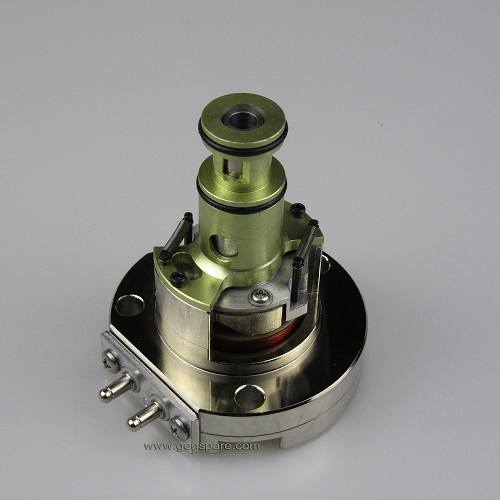

Cummins NTA855 N Series Engine Generator Actuator 3408324
Cummins Actuator 3408324
Cummins 3408324 Actuator
introduction
Warranty: 1 Year
Gross Weight: 1 kg
Stock Status: In stock
Replaced Brand: Cummins
Part No. : 3408324
Function: Cummins Actuator
Usage: Cummins NTA855 Engine Actuator
Product Name: Cummins Actuator 3408324
Compatible with: Cummins Generator Actuator
Cummins NTA855 N Series Engine Generator Actuator 3408324
We have Cummins Actuator 3408324 in our Regular Stock!
The Brands / Part No. here are for reference purpose only, our parts can exactly replace the original ones.
Engine Type of Cummins Engine PT Pump Actuator 3408324 | normally closed |
Application Range of Cummins Engine Actuator 3408324 | engine below 300 KW |
Rated Operational Voltage of 3408324 Cummins NTA855 Generator Actuator | 24 V |
Working Temperature for Cummins Actuator 3408324 | 15-125°C |
Response Time for Cummins 3408324 Actuator | 20 ms |
No-load Current of 3408324 Cummins N Series Engine Actuator | 0.9-1.1 A; Voltage: 3-9 V |
Full-load Current of Cummins Engine Actuator 3408324 | 1.1-1.5 A; Voltage: 10-12 V |
Compatible Cummins Governor EFC | 3044196 |
We provide following Actuators:
Ø 3408324----24V, Used in < 300KW normally closed diesel generator;
Ø 3408326----24V, Used for > 300KW normally closed diesel generator
Ø 3408328----24V, Used for < 300KW open type diesel generator;
Ø 3408329----24V, Used for > 300KW normally open diesel generator
Ø 3085218----24V, Used in < 300KW normally closed diesel generator;
Ø 3085219----24V, Used for > 300KW normally closed diesel generator
Ø 3085220----24V, Used for < 300KW open type diesel generator;
Ø 3085221----24V, Used for > 300KW normally open diesel generator
