Fortrust Generator Actuator A07A,A08A-W
Fortrust Generator Actuator A1A, A1AWL
Warranty: 1 Year
Gross Weight: 2 kg
Stock Status: In stock
Replaced Brand: Fortrust
Part No. : A07A, A08A-W, A1A, A1AWL
Function: FORTRUST Actuator A07A
Usage: FORTRUST Actuator A08A-W
Compatible with: FORTRUST Actuator A1A
Product Name: FORTRUST Actuator A1AWL

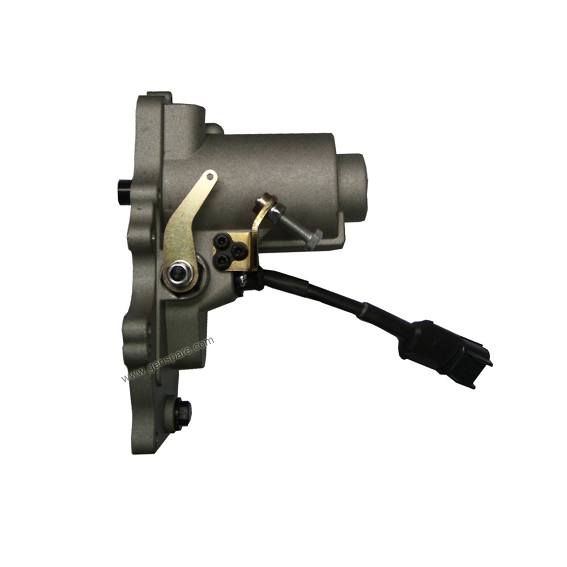

Fortrust A07A A08A-W A1A A1AWL Generator Actuator
Original Fortrust Generator Actuators , whole-sale price!
You just need to provide your Engine brand and engine model number, we will choose a suitable actuator.
The Brands mentioned here are for reference only, our parts can exactly replace the original ones.
FORTRUST A07A series actuator is suitable for the Gen-set power range below 100 KW.
FORTRUST A08A-W actuator is suitable for a Gen-set power range from 100KW to 300KW .
Generator Actuator :
HT-GAC Sereis: ADC120, ACD175A, ADC225
Fortrust Series: A02A, A07A, A08, A1A, A1AWL, A2A, A3A, A3B, CA2, A800, A900, A1000C-W, A1000C-F3-d1, A2000C-F3, A2000C-W, A1000B, A2000B, A4000B
YUNYI Series: YZ01A, YZ01B, YZ01C, YZ02A-P, YZ02A-D, YZ02A-M, YZ02A-KL, YZ02A-BQ. YZ02A-K, YZ02A-YI, YZ03A-M, YZ03A-PM, YZ03A-1, YZ03A-L, YZ04A, YZ05C, YZ06B, YZ07B
Compatible Engine Types:
Diesel / Gasoline
Compatible Engine Brands:
Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands
Features of Fortrust A07A actuator
Straight line output;
Working torque:0.7 Nm;
Working stroke:18mm;
Different types installation (Internal / External and etc. )
Features of Fortrust A08A-W actuator
Mounts directly to a Bosch P/A Series Fuel Injection Pump;
Capable of controlling pumps on engines up to 6-cyl;
Includes manual shut-off mechanism
Internal installation;
Connects directly to the fuel rack bellows
Cost effective design
Compact size, fast response <35msec
Features of Fortrust A1A actuator
Straight line output;
Working torque:1 Nm;
Working stroke:21mm;
External installation;
Features of Fortrust A1AWL actuator
Straight line output;
Working torque:1 Nm;
Working stroke:20mm;
External installation;
