Diesel Engine Generator Speed Controller Control Unit Governor

Diesel Engine Speed Governor

Diesel Engine Speed Control Unit



introduction

Warranty: 1 Year

Stock Status: In stock

Replaced Brand: GAC,Cummins,Kutai

Function: Diesel Generator Speed Control Unit

Usage: Diesel Engine Speed Control Unit

Compatible with: Diesel Engine Speed Governor

Product Name: Diesel Generator Speed Governor

Diesel Engine Generator Speed Controller Control Unit Governor



We have Diesel Generator Speed Controller in our Regular Stock!

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.



Diesel Engine Speed Controller :

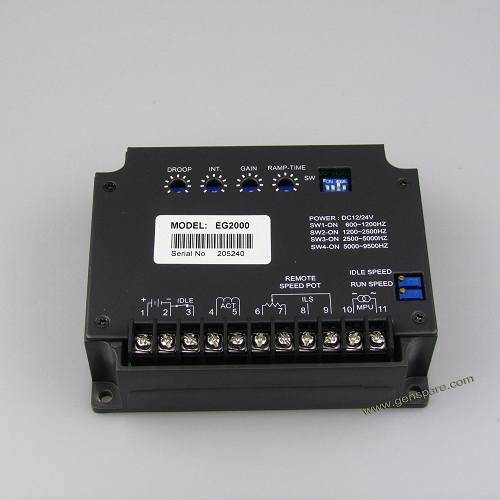

Kutai: EG2000, EG3000

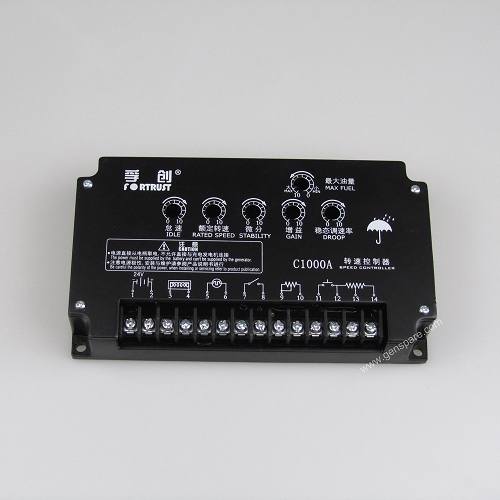

Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002

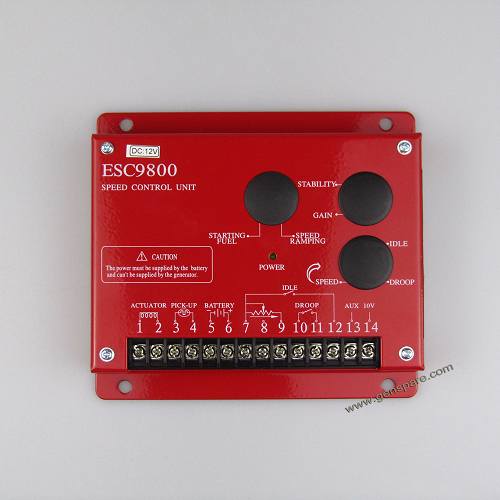

YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800

Other Speed Governors: S6700E, S6700H

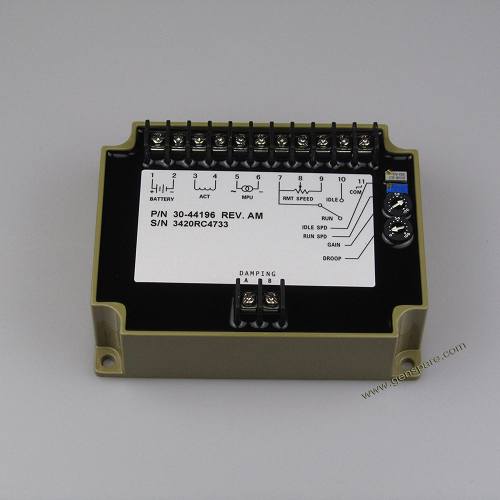

Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060

GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714



Compatible Engine Brands for ESD5500E Diesel Generator Speed Governor

Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands

 Speed Controler-1.jpg

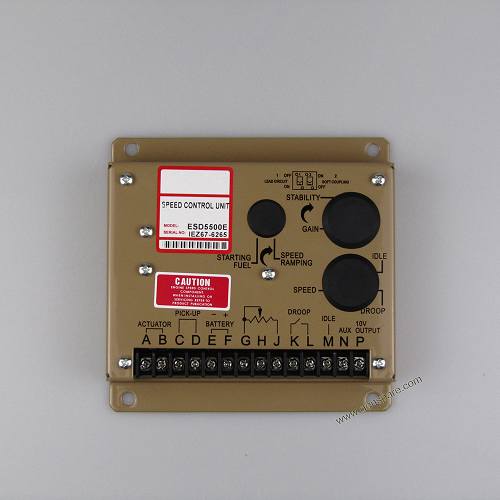

The Diesel Engine Speed Governor ESD5500E is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, it should be mounted vertically. This will allow the fluid to drain away from the speed control unit.

TECHNICAL SPECIFICATIONS of ESD5500E Diesel Generator Speed   Control Unit

Isochronous Operation/Steady State Stability

± 0.25% or better


Speed Range/Governor

1K-7.5K Hz continuous


Speed Drift with Temperature

± 1% Maximun


IDLE Adjustment

160 ± 20Hz ~ 60% of set speed


Droop adjustment Min.(K-L Jumpered)

15Hz. ± 6Hz. per 1.0 A change


Droop adjustment Max.(K-L Jumpered)

400Hz. ± 75Hz. per 1.0 A change


Droop Adj. Max. (K-L Jumpered)

875Hz., ± 75Hz. per 1.0 A change


Droop Adj. Min. (K-L Jumpered)

15Hz., ± 6Hz. per 1.0 A change


Speed Trim Range

± 200Hz.


Remote Variable Speed Range

500 -7.5Hz. or all part thereof


Terminal Sensitivity

J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance


L: 735Hz., ± 60Hz/Volt @ 65 K Impedance


N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance


P: 10V DC Provide @ 20ma Max.


Speed Switch Adjustment Range

1000-10000Hz.


ENVIRONMENTAL of Diesel Engine Speed   Control Unit :

Ambient Operating Temperature Range

-40°c to +85°c


Relative Humidity

up to 95%


Storage Temperature

-55°c ~ 90°c


Shock

20-100HZ 500mm/Sec.


INPUT POWER:

Provide

12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)


Polarity

Negative Ground(Case Isolated)


Power Consumption

50mA continuous plus actuator current


Actuator Current Range @ 25°c-(Inductive Load)

Min. 2.5 Amps, Max. 10 Amps continuous


Speed Sensor Signal

0.5-120 V RMS


Speed Switch Relay Contacts(N.O.and N.C.)

10Amp


PHYSICAL

Weight

650g


Note: The performance parameters in the frequency when measuring 4000Hz

HT Industrial Automation Limited
(Chongqing HT Electronic Tech. Limited)
Tel: 0086-023-85551980
Fax: 0086-023-85551980
Mobile: 0086-13452987773
Skype: htautomatic
WhatsApp: 0086-13452987773
WeChat: HT-13452987773
Email: htautomation@foxmail.com
Website: www.genspare.com
Address: No.18,BinJiang Road,
JiangJin District,Chongqing,China
