Cummins EFC Speed Controller Governor 3044196

Cummins Speed Controller

Cummins EFC Controller



introduction

Warranty: 1 Year

Gross Weight: 1 kg

Stock Status: In stock

Replaced Brand: Cummins

Part No. : 3044196

Function: Cummins EFC Governor 3044196

Usage: Cummins Speed Governor 3044196

Compatible with: Cummins Speed Controller 3044196

Product Name: 3044196 Cummins EFC Controller

Cummins EFC Speed Controller Governor 3044196



3044196 Product Specification Download.pdf


We have Cummins EFC Speed Controller 3044196 in our Regular Stock!

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.



Generator Speed Controller:

Kutai: EG2000, EG3000

Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002

YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800

Other Speed Governors: S6700E, S6700H

Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060

GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714



Compatible Engines for Cummins EFC Governor 3044196:

Suitable for Cummins NTA855, M11, K19 Series constant speed engines.



Cummins EFC 3044196 is an engine speed controller designed by all electronic devices for Cummins actuator, the speed controller has fast and precise response to transient load changes. It has a wide speed control range.  For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.

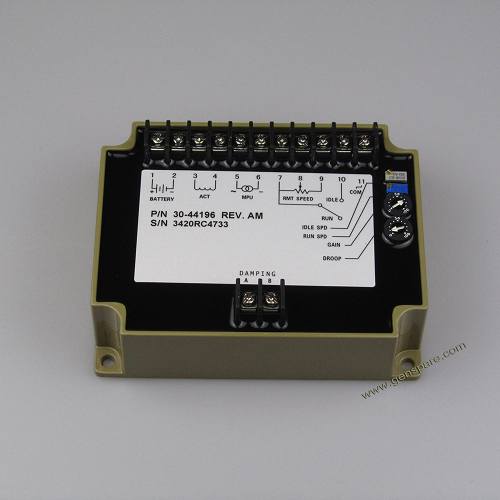

 Speed Controler-1.jpg

SPECIFICATIONS & PERFORMANCE of Cummins 3044196 Speed Governor:
Operating Voltage: 12 or 24 volts ±20%
Steady State Speed Band: ±0.25%
Ambient Operating Temperature: -40
to +85
Temperature Stability: Better than ±0.5% over temperatures of -40
to +125
Mechanical Vibration: Withstands the following vibration without failure or degraded , performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz
Connections: Terminal strip
Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs.) Magnetic Pickup Frequency Range: 2500 - 5000 Hz Output Signal: PWM current to 5A at max.
Actuator Compatibility: EFC3408324, DYNA2000, DYNA2500



SPECIFICATION of 3044196 Cummins EFC Speed   Controler:

RPM Stability:

<±0.25%

Speed Range:

1KHz ~ 6.5KHz

Thermal Stability:

Max ±0.7%

IDLE Regulation:

260 ±20Hz

DROOP Regulation:

Minimum 15Hz ±6Hz/ 1 Amp

Maximum:  400Hz ±75Hz/ 1 Amp

External Speed Regulation:

±200Hz  (with 1 KΩ connected)

AUX Input Sensitivity:

148Hz / 1V., ±10Hz

Impedance:

1MΩ

Working Temp Range:

-40 ~ 85 °C

ENVIRONMENT:

Working Humidity Range:

Maximum 95%

Stocking Temp:

-55 ~ 92 °C

Shocking:

20-100HZ  500mm/Sec.

INPUT POWER PROVIDE:

Voltage:

24V

Grounding Pole:

Negative pole

Power Provide:

40mA

Actuator Continuous Current:

Minimum 1A, Maximum 4.5A

MPU:

Signal:

2 ~ 120V RMS

SPECIFICATION:

RPM Stability:

<±0.25%

Speed Range:

1KHz ~ 6.5KHz

Thermal Stability:

Max ±0.7%

IDLE Regulation:

260 ±20Hz

DROOP Regulation:

Minimum 15Hz ±6Hz/ 1 Amp

Maximum:  400Hz ±75Hz/ 1 Amp

External Speed Regulation:

±200Hz  (with 1 KΩ connected)

AUX Input Sensitivity:

148Hz / 1V., ±10Hz

Impedance:

1MΩ

Working Temp Range:

-40 ~ 85 °C

ENVIRONMENT:

Working Humidity Range:

Maximum 95%

Stocking Temp:

-55 ~ 92 °C

Shocking:

20-100HZ  500mm/Sec.

INPUT POWER PROVIDE:

Voltage:

12V or 24V

Grounding Pole:

Negative pole

Power Provide:

40mA

Actuator Continuous Current:

Minimum 1A, Maximum 4.5A

MPU:

Signal:

2 ~ 120V RMS
