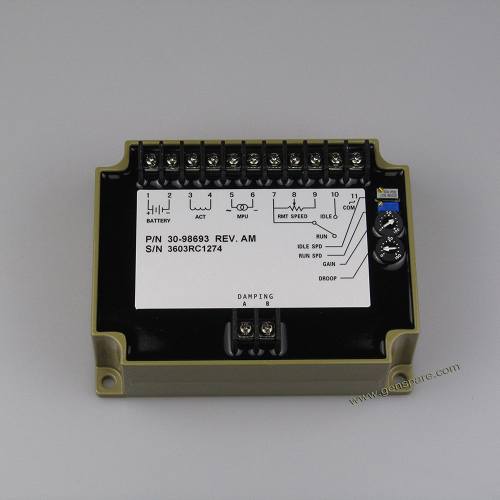

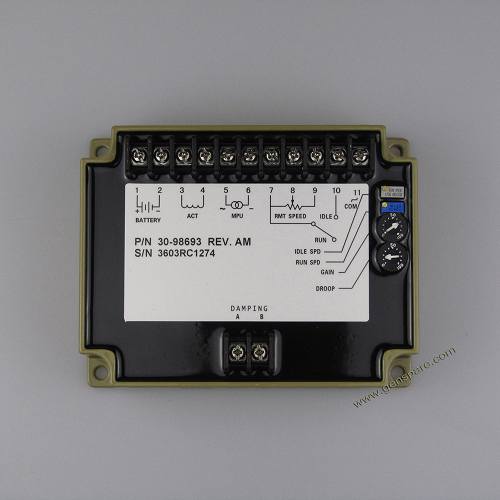

Cummins Engine Generator Speed Governor 3098693
3098693
Speed Governor 3098693
introduction
Warranty: 1 Year
Gross Weight: 1 kg
Stock Status: In stock
Replaced Brand: Cummins
Part No. : 3098693
Function: Cummins Speed Governor 3098693
Usage: Cummins Engine Governor 3098693
Product Name: 3098693 Cummins Speed Governor
Compatible with: Cummins Generator Speed Governor 3098693
Cummins Engine Generator Speed Governor 3098693
We have Cummins Engine Speed Governor 3098693 in our Regular Stock!
The Brands mentioned here are for reference only, our parts can exactly replace the original ones.
Generator Speed Governor:
Kutai: EG2000, EG3000
Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002
YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800
Other Speed Governors: S6700E, S6700H
Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060
GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714
Parameters for Cummins 3098693 Speed Governor:
Operating Voltage: 12 or 24 volts ±20%
Steady State Speed Band: ±0.25%
Ambient Operating Temperature: -40℃ to +85℃
Temperature Stability: Better than ±0.5% over temperatures of -40℃ to +125℃
Mechanical Vibration: Withstands the following vibration without failure or degraded performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz Connections: Terminal strip
Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs.) Magnetic Pickup Frequency Range: 2500 - 5000 Hz Output Signal: PWM current to 6A at max.
Actuator Compatibility: EFC3408326, DYNA7000
Electronic fuel control(EFC)
SPECIFICATION of 3098693 Cummins speed governor: | |
RPM Stability: | <±0.25% |
Speed Range: | 1KHz ~ 6.5KHz |
Thermal Stability: | Max ±0.7% |
IDLE Regulation: | 260 ±20Hz |
DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
Maximum: 400Hz ±75Hz/ 1 Amp | |
External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
Impedance: | 1MΩ |
Working Temp Range: | -40 ~ 85 °C |
ENVIRONMENT: | |
Working Humidity Range: | Maximum 95% |
Stocking Temp: | -55 ~ 92 °C |
Shocking: | 20-100HZ 500mm/Sec. |
INPUT POWER PROVIDE: | |
Voltage: | 24V |
Grounding Pole: | Negative pole |
Power Provide: | 40mA |
Actuator Continuous Current: | Minimum 1A, Maximum 4.5A |
MPU: | |
Signal: | 2 ~ 120V RMS |
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency.
