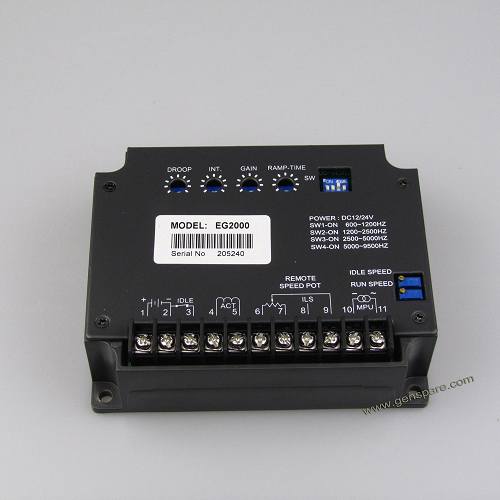

Kutai Engine Speed Control Unit Governor Controller EG2000

EG2000

Kutai EG2000



introduction

Warranty: 1 Year

Gross Weight: 0.7 kg

Stock Status: In stock

Replaced Brand: Kutai

Part No. : EG2000

Usage: Engine Speed Control Unit

Compatible with: Kutai Speed Governor

Product Name: Kutai Governor Controller

Function: KUTAI EG2000 Governor Controller

Kutai Engine Speed Control Unit Governor Controller EG2000

Universal Engine Governor Controller



EG2000 Product Description Download.pdf

EG2000 Manual Download.pdf


We have Kutai Speed Governor Controller EG2000 in our regulalar stock!

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.


Engine Speed Governor :

Kutai: EG2000, EG3000

Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002

YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800

Other Speed Governors: S6700E, S6700H

Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060

GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714



Compatible Engine Brands for Kutai EG2000 Engine speed control unit

Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands



Kutai Governor Controller EG2000 is an universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators. It's compatible with following model.

*EG1065X and EG1069X have ceased production and will be replaced by Kutai EG2000.

Speed Controler-1.jpg

Features of EG2000 Kutai Engine Governor Controller



·            Works on a wide ranges of MPU/flywheel frequencies

·            15 Amp Max Output

·            Suitable for all types of diesel and Gas engines

·            High Sensitivity and stable at Low Frequency Variations

·            Moisture, vibration, and rust protected, Epoxy encapsulated electronics

·            For Use With Isochronous Generators & Automatic Paralleling PLC controls

·            Idle Speed Adjustment and connections for a Remote Speed POT



Specifications for Kutai Engine Control Unit EG2000



Operating Voltage

10 VDC to 30 VDC

Output Current

From 0.5 Amp to 15 Amp

Frequency Range

600 Hz ~ 9500 Hz (PMG Signal)

Idle Speed Frequency

Adjustable From 30~85% of normal

Speed Band

±0.25% at steady state

Temp. Stability

Between -40~85 °C Better than ±0.5%

Remote Speed Adjustment Range (2 mode)

Adjustable Range ±5% with 5 K Ohm   potentiometer

Ramp Time

3 to 20 Sec. (Adjustable)

Operation Environment

Operation Temp. : -40~85 °C
  Storage Temp. : -40~85 °C
  Relative Humidity : Maximum 95%
  Vibration : 3G @ 100~2 KHz

DIP Switch Description

SW1 : ON   600~1200 Hz
  SW2 : ON   1200~2500 Hz
  SW3 : ON   2500~5000 Hz
  SW4 : ON   5000~9500 Hz

Governor Controls

DROOP : Droop Rate Adjustment
  GAIN : MPU Output Gain Adjustment
  Int. : Engine Stability Adjustment
  RAMP-TIME : Soft Start Adjustment
  SPEED : Speed Adjustment
  IDLE : Idle Speed Adjustment

Dimensions

147.0 (L) x 114.0 (W) x 40.0 (H) mm

Weight

690g ±2%



*Note : All features & specifications subject to change without notice.
