Engine Speed Controller Governor Control Unit S6700E

S6700E

Speed Controller S6700E



introduction

Warranty: 1 Year

Gross Weight: 0.8 kg

Stock Status: In stock

Part No. : S6700E

Product Name: Engine Speed Controller S6700E

Engine Speed Controller Governor Control Unit S6700E



The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.



Features of Speed Governor S6700E:

Power reverse connection protection

Actuator default protection

Speed signal Lose protection

Over-speed & External high Level input Alam




 Speed Controller S6700E:

 Environmental

 Ambient operating temperature   range

 - 40 ~ 85 °C

 Relative humidity

95%

 Input Power

 Supply

 24VDC

 Actuator current range

 2.5-10A(continuous)

 Speed sensor signal

 1-20v

 Characteristics

 Speed fine adjustment range

 ± 100% r / min

 Frequency   fluctuation

 ± 0.25%

 Steady speed   droop

 0~3% (variable)

 Temperature   drift

 ± 1% (maximum)

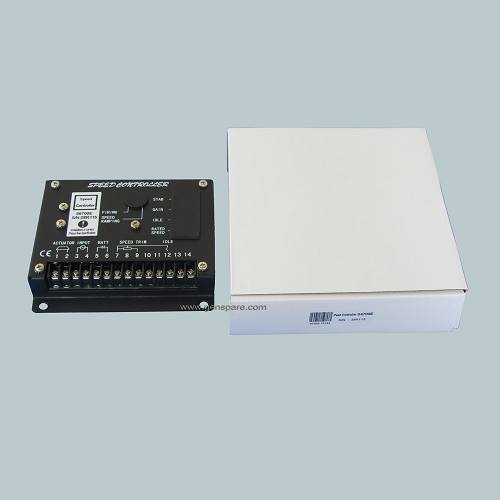

Speed Controler-1.jpg
