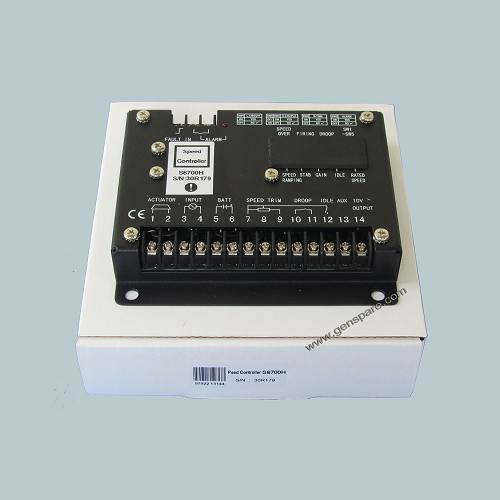

S6700H
Speed Controller S6700H
Warranty: 1 Year
Gross Weight: 0.8 kg
Stock Status: In stock
Part No. : S6700H
Product Name: Engine Speed Controller S6700H
Engine Speed Governor Controller Control Unit S6700H
The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700H speed governor controller provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.
Features of Speed Governor S6700H:
Power reverse connection protection
Actuator default protection
Speed signal Lose protection
Over-speed & External high Level input Alam
Speed Controller S6700H: | ||
Environmental | Ambient operating temperature range | - 40 ~ 85 °C |
Relative humidity | 95% | |
Input Power | Supply | 24VDC |
Actuator current range | 2.5-10A(continuous) | |
Speed sensor signal | 1-20v | |
Characteristics | Speed fine adjustment range | ± 100% r / min |
Frequency fluctuation | ± 0.25% | |
Steady speed droop | 0~3% (variable) | |
Temperature drift | ± 1% (maximum) |
