GAC Magnetic Speed Pickup Sensor MSP674

MSP674

GAC Speed Sensor MSP674



introduction

Warranty: 1 Year

Gross Weight: 0.15 kg

Stock Status: In stock

Replaced Brand: GAC

Part No. : MSP674

Function: GAC MSP674 Magnetic Speed Sensor

Usage: GAC Speed Sensor MSP674

Product Name: GAC Magnetic Pickup MSP674

Compatible with: GAC Speed Pickup MSP674

GAC Magnetic Speed Pickup Sensor MSP674



We have GAC Speed Sensor MSP674 in our regular stock!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

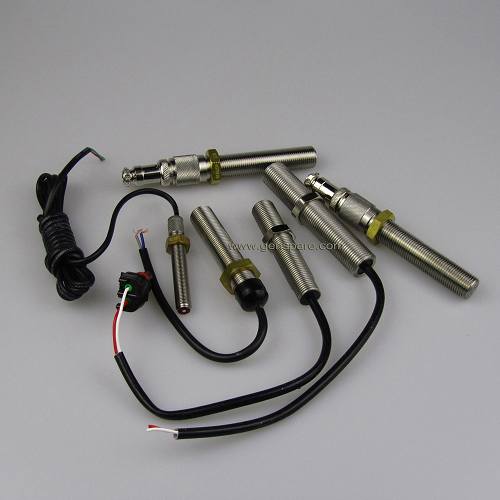

The GAC Magnetic Pickup MSP674 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor.  Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit.  The signal from the GAC MSP674 Magnetic Speed Sensor, teeth per second (Hz.), is directly proportional to engine speed.  Speed sensors are available in various lengths in both U.S. and metric threads.  Wire leads, military connectors, automotive connectors or stud terminals are also available.  Over 30 styles currently available.



5/8-18 UNF   Threaded


Product #

 Thread   Length

 Harness   Length

 Connector

 With   Mating Connector


MSP674 Speed Sensor

3in [76.2mm]

High Output 913Ω

 Military

No


MSP675

3.19in [81mm]

7in [178mm]

Flying   Leads

No


MSP676

5in [127mm]

1ft [0.3m]

Flying   Leads

No


MSP677

3in [76mm]

na

Military

No


MSP678

4.86in [123.4mm]

 na

Military

No


MSP679

3in [76.2mm]

 na

Military

Yes


MSP6710

4.86in [123.4mm]

 na

Military

Yes


MSP6719

2.37in   [60.2mm]

1ft [0.3m]   Harness

Flying   Leads

No


MSP6720

3.86in [98.1mm]

1ft [0.3m]   Harness

Flying   Leads

No


MSP6721

3.19in [81mm]

2.75in [70mm]

 Automotive

No


MSP6721C

3.19in   [81mm]

 2.75in   [70mm]

 Automotive

Yes


MSP6722

 2.37in   [60.2mm]

 6in   [152mm]

Push-On   Terminals

No


MSP6728

3.19in [81mm]

6.25in [159mm]

Packard

No


MSP6728C

 3.19in   [81mm]

6.25in [159mm]

Packard

Yes


MSP6732

3.16in [80.3mm]

3.25in [82.6mm]

Dual   Packard

No


MSP6732C

3.16in [80.3mm]

3.25in   [82.6mm]

Dual   Packard

Yes


MSP6743

3.5in   [89mm]

High Output   1.2kΩ

#8-32NC-2A   Threaded Stud Terminals

No
