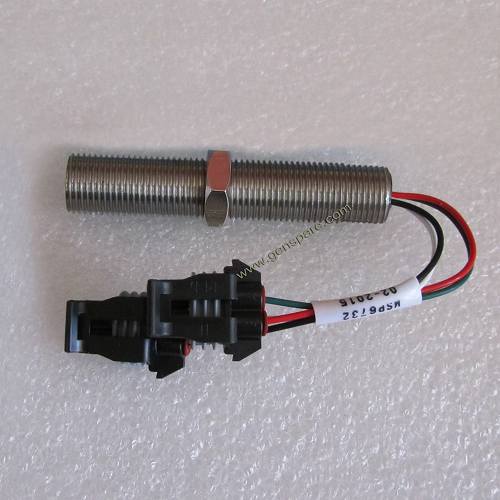

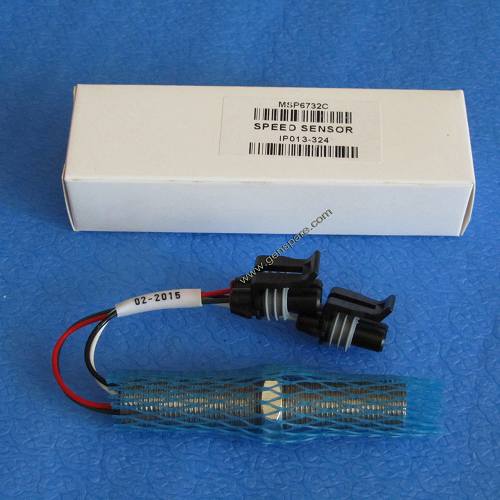

GAC Magnetic Pickup Speed Sensor MSP6732C MSP6732
MSP6732
MSP6732C
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : MSP6732C, MSP6732
Function: GAC MSP6732C Magnetic Pickup
Usage: GAC Speed Pickup MSP6732C
Product Name: GAC Speed Pickup MSP6732
Compatible with: GAC Speed Sensor MSP6732C
GAC Magnetic Pickup Speed Sensor MSP6732C MSP6732
We have GAC Magnetic Pickup MSP6732C in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The GAC Speed Sensor MSP6732 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the GAC Speed Pickup MSP6732, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
5/8-18 UNF Threaded | |||||
Product # | Thread Length | Harness Length | Connector | With Mating Connector | |
MSP674 | 3in [76.2mm] | High Output 913Ω | Military | No | |
MSP675 | 3.19in [81mm] | 7in [178mm] | Flying Leads | No | |
MSP676 | 5in [127mm] | 1ft [0.3m] | Flying Leads | No | |
MSP677 | 3in [76mm] | na | Military | No | |
MSP678 | 4.86in [123.4mm] | na | Military | No | |
MSP679 | 3in [76.2mm] | na | Military | Yes | |
MSP6710 | 4.86in [123.4mm] | na | Military | Yes | |
MSP6719 | 2.37in [60.2mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6720 | 3.86in [98.1mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6721 | 3.19in [81mm] | 2.75in [70mm] | Automotive | No | |
MSP6721C | 3.19in [81mm] | 2.75in [70mm] | Automotive | Yes | |
MSP6722 | 2.37in [60.2mm] | 6in [152mm] | Push-On Terminals | No | |
MSP6728 | 3.19in [81mm] | 6.25in [159mm] | Packard | No | |
MSP6728C | 3.19in [81mm] | 6.25in [159mm] | Packard | Yes | |
MSP6732 Speed Sensor | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | No | |
MSP6732C Speed Pickup | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | Yes | |
MSP6743 | 3.5in [89mm] | High Output 1.2kΩ | #8-32NC-2A Threaded Stud Terminals | No | |
