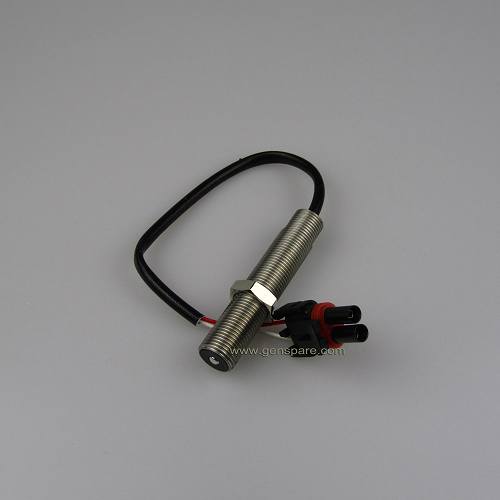

Cummins Generator Magnetic Pickup Speed Sensor MPU 3034572

We have Cummins Speed Sensor 3034572 in our regular stock!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

2 versions are available for Cummins MPU 3034572:

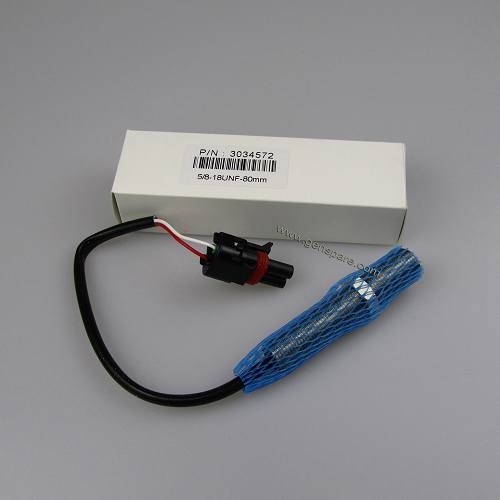

  3034572 with 80mm length thread

  3034572 with 120mm length thread

Cummins 3034572 Magnetic Pickup Specifications:

Thread Size for Cummins Generator speed sensor︰5/8-18 unf-2A

Tap Drill Size of Cummins Generator magnetic pickup︰37/64 inch

Proximity to Gear Teeth for Cummins magnetic pickup: .028 in. min.-.042. in. max.

                     (Approximately 1/2 to 3/4 turn)

Temperature Range of Cummins magnetic pickup sensor︰-55℃ to 105℃

Output at Cranking Speed︰1.5 volts AC minimum

Maximum Output for Cummins magnetic speed sensor︰30 volts AC

Coil Resistance︰300 ohms maximum
