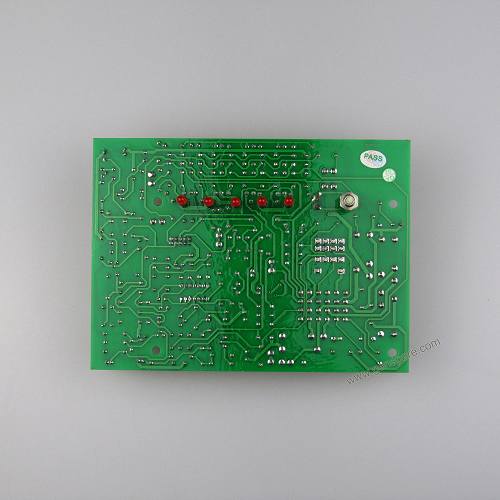

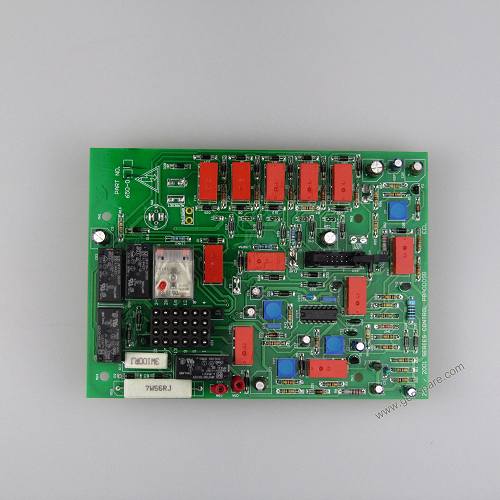

FG Wilson PCB 650-091 for 12V Olympian Generator

650-091

FG Wilson 650-091



introduction

Warranty: 1 Year

Gross Weight: 0.4kgs

Stock Status: In stock

Part No. : 650-091

Replaced Brand: FG Wilson

Function: FG Wilson PCB

Usage: PCB 650-091

Compatible with: Olympian PCB 650-091

Product Name: FG Wilson PCB 650-091

FG Wilson PCB 650-091 for 12V Olympian Generator



We have FG Wilson PCB 650-091 in our regular stock!

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.



12V Olympian FG Wilson Engine Interface Module :

630-088 EIM

630-465 EIM

917-423 EIM


24V Olympian FG Wilson Engine Interface Module :

630-089 EIM

630-466 EIM

917-422 EIM

917-530 EIM



12V Olympian FG Wilson PCB :

650-091 PCB Printed Circuit Board, 12V for Olympian or F.G. Wilson 12 volt engine control.  Replaces PC Board 650-091.



24V Olympian FG Wilson PCB :
650-092 PCB Printed Circuit Board, 24V for Olympian or F.G. Wilson 24 volt engine control.  Replaces PC Board 650-092.

Specifications of FG Wilson 650-091 PCB



The FG Wilson Engine Interface Module is a sealed engine mounted module that provideds switching relays for the starter motor solenoid, glow plug and fuel solenoid.

Each of these circuits is protected with individual automative fuses mounted in the module. Individual LED’s illuminate when each circuit is energized in addition these LED’s greatly aid when fualt finding.



This module is mounted on the engine with anti-vibration mounts and is easily connected to the engine via loom plugs. Use of the FG WILSON EIM 630-465 means that heavy currents such as fuel solenoid power are isolated from the control panel thus enabling individual protection of each of the circuits.
