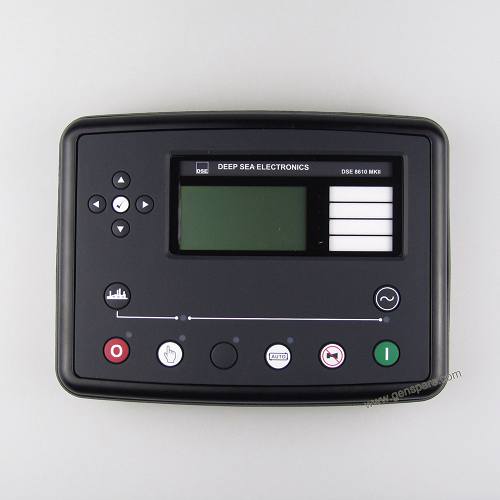

Deep Sea DSE 8610 Generator Controller DSE8610 MKII DSE8610MKII

DSE8610 Product Specification Download.pdf

DSE8610 MKII Product Specification Download.pdf

DSE8610MKII Operation Manual.pdf

DSE8610 DSE8610MKII

AUTO START LOAD SHARE MODULE

We have Deep Sea DSE8610 DSE8610MKII Genset Generator Controller in stock.

The DSE 8610 DSE8610MKII Generator Controller is an easy to use multi-generator load-share system, designed to synchronize up to 32 generators including electronic and non-electronic engines.

The Deep Sea Generator Controller DSE8610 DSE8610MKII monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition.

System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder.

The event log will record 250 events to facilitate easy maintenance. An extensive number of fixed and flexible monitoring, metering and protection features are included as well as comprehensive communication and system

expansion options.

Using the DSE PC Configuration Suite Software allows easy alteration of the operational sequences, timers and alarms. With all communication ports capable of being active at the same time, the Deep Sea 8610 Generator Controller is ideal for a wide variety of demanding load share applications.

KEY LOAD SHARE FEATURES OF  DSE8610MKII DEEP SEA GENERATOR CONTROLLER

• Peak lopping

• Sequential set start

• Manual voltage/frequency adjustment

• R.O.C.O.F. and vector shift

• Generator load demand

• Automatic hours run balancing

• Mains (Utility) de-coupling

• Mains (Utility) de-coupling test mode

• Dead bus sensing

• Bus failure detection

• Direct governor and AVR control

• Volts and frequency matching

• kW and kV Ar load sharing

KEY FEATURES OF DEEP SEA DSE8610MKII DSE8610 GENSET CONTROLLER

• Comprehensive load share capabilities

• Configurable inputs (11)

• Configurable outputs (8)

• Voltage measurement

• Built-in governor and AVR control

• kW overload alarms

• Comprehensive electrical protection

• Magnetic pick-up

• Electronic engine capability

• RS232 & RS485 remote communications

• Modbus RTU

• PLC functionality

• Multi event exercise timer

• Back-lit LCD 4-line text display

• Multiple display languages

• Automatic start/Manual start

• Audible alarm

• Reduced file transfer time

• Fixed and flexible LED indicators

• Event log (250)

• Engine protection

• Fault condition notification to a designated PC

• Protected front panel programming

• PC configuration

• Fully configrable

• SMS alert messaging

• Compatible with DSE8700 Series

KEY BENEFITS of Deep Sea DSE8610 Controller

• RS232 & RS485 can be used at the same time

• DSENet connection for system expansion

• PLC functionality

• Auto voltage sensing

• Five step dummy load support

• Five step load shedding support

• High number of inputs and outputs

• Worldwide language support

• Configuration Suite PC software

• Direct USB connection to PC

• Ethernet monitoring

• USB host

• Data logging & trending

EXPANSION DEVICES

• DSE2131 Ratiometric Input

Expansion Module

• DSE2133 RTD/Thermocouple Input Expansion Module

• DSE2152 Analogue Output Expansion Module

• DSE2548 LED Expansion Module

• DSE2130 Input Expansion Module

• DSE2157 Output Expansion Module

• DSE124 CAN/MSC Extender
