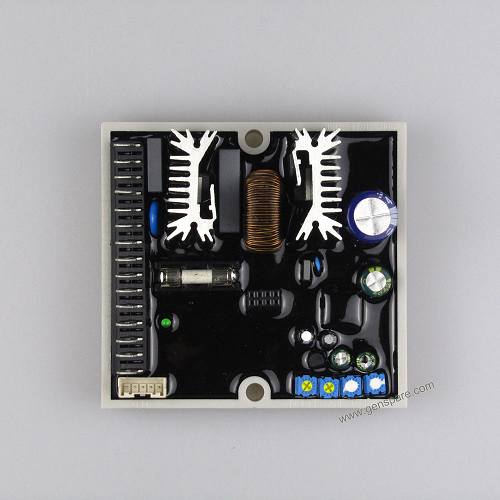

Mecc Alte Generator Auto Voltage Regulator DSR AVR

DSR AVR

AVR DSR



introduction

Warranty: 1 Year

Gross Weight: 0.4kg

Stock Status: In stock

Part No. : DSR

Replaced Brand: Mecc Alte

Function: Mecc Alte Generator AVR

Usage: Mecc Alte Auto Voltage Regulator

Compatible with: Mecc Alte AVR DSR

Product Name: Mecc Alte DSR AVR

New Products

Mecc Alte Generator Auto Voltage Regulator DSR AVR



We have Mecc Alte DSR AVR in regular stock!

The brands / Part No. mentioned here are for reference purpose only, we provide Replacement model / not original Mecc Alte product!



The Mecc Alte AVR DSR is an advanced AVR replacing the traditional automatic voltage regulator. This voltage regulator is fully digital controlled and is fitted as standard across all our ECO and ECP models.

Connections on the Mecc Alte DSR are through 15 fast on / fast off connectors which speed up the connection process. This is especially useful if reconnecting a 12 wire machine to any specific voltage. This regulator is cross-compatible with all ECO and ECP machines and can be used as standard with the MAUX system and the PMG ma systems, so there’s never any need to change regulators. Its single phase sensing comes as standard.

By means of the external communication board (DXR or DL1), computer connection (RS232 or USB) or PLC connection (RS485 via MODBUS) is available. This allows changes to the AVR settings, to monitor in real-time performances (Voltage, Frequency or DSR status), or to download the alarm report (Communication software is available from Mecc Alte).

Characteristics

Variable voltage supply

40 ÷ 270 Vac

Frequency range

15 Hz ÷ 72 Hz

Precision of voltage   regulation

± 1%

Maximum continuous output   current

5 Adc

Environmental temperature

-25°C ÷ +70°C

Regulation

True RMS or average measurement (70÷280   Vac)

Transient power drops and   overvoltage

within ± 15%

Voltage recovery time

within ± 3% of the value set, in less than   300 msec

Transient overvoltage during   start up

less than 5% of nominal voltage

Sensing

Single phase

Parameters (can be programmed   via software)

VOLT, STAB, AMP and Hz can be set with   trimmers (default)

50/60Hz through a “jumper” (default)

Features

Analogical remote control of   output voltage is possible through external voltage (0÷2,5Vdc) or with a 10   Kohm linear potentiometer

Underspeed protection with   adjustable threshold and slope

Overvoltage and undervoltage   alarms

Excitation overcurrent   protection with delayed intervention

Management of temporary short   circuits (start up of asynchronous motors)

Open collector output (not   insulated) signalling intervention of protective devices (insulation on   optional DI1 module) with programmable activation with respect to the   individual alarms and the possibility to delay intervention

Abnormal operation conditions   storage (type of alarm, number of events, duration of the last event, total   time)

Memorization of the regulator   operation time (starting from revision 11 of the Firmware)

USB communication interface   (with an optional USB2DxR module)
