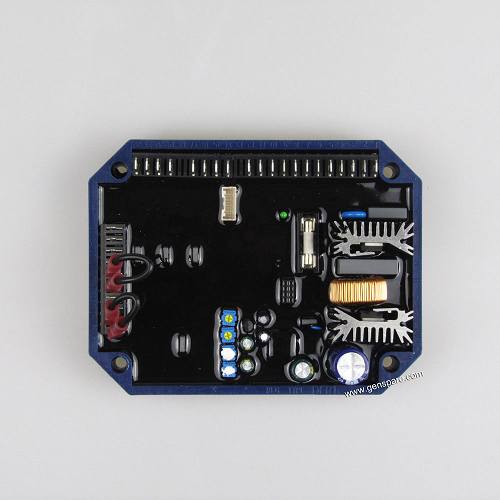

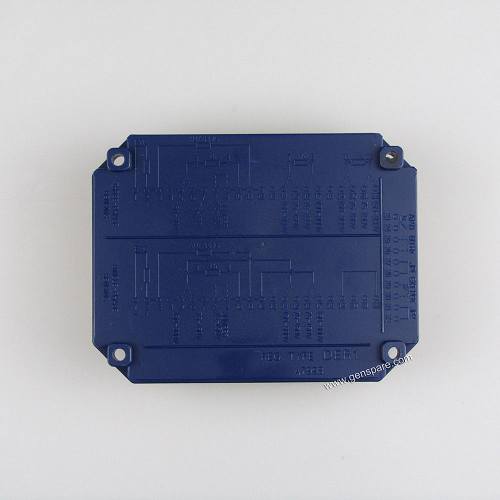

Mecc Alte Genset AVR DER DER1 Voltage Regulator

DER AVR

DER1 AVR



introduction

Warranty: 1 Year

Gross Weight: 0.6kg

Stock Status: In stock

Part No. : DER DER1

Replaced Brand: Mecc Alte

Function: Mecc Alte Genset AVR

Usage: Mecc Alte Genset Voltage Regulator

Compatible with: Mecc Alte AVR DER

Product Name: Mecc Alte AVR DER1

New Products

Mecc Alte Genset AVR DER DER1 Voltage Regulator



We have Mecc Alte DER DER1 AVR in regular stock!

The brands / Part No. mentioned here are for reference purpose only, we provide Replacement model / not Original Mecc Alte product!



The Mecc Alte DER AVR is a voltage regulator for synchronous alternators, designed for stand alone working and calibration; to maximize performances, the regulator should be intended as part of a system made up of at least three components: the Mecc Alte AVR DER1 Voltage Regulator (control unit), a communications module (USB2DxR, for example) and a supervision unit, as illustrated in figure 6.



DER Series AVR have Two versions of the DER 1 and DER 1/A available; Mecc Alte DER1 AVR is optimised for Mecc Alte Series 3 to 38 alternators, while Mecc Alte DER1/A AVR is optimised for Mecc Alte series 40, 43 and 46 alternators; the two versions differ primarily in the default parameters. NOTE: the parameter that defines the output voltage (with the VOLT trimmer disabled) is set on 0 (so that the adjustment takes place on the minimum voltage).



Characteristics of DER Mecc Alte Genset AVR

Variable voltage supply

40 ÷ 270 Vac

Frequency range

12 Hz ÷ 72 Hz

Precision of voltage   regulation

± 1%

Precision of voltage   regulation (stabilized condition)

± 0,5%

Maximum continuous output   current

5 Adc

Environmental temperature

-25°C ÷ +70°C

Voltage regulation

75÷300 Vac

Transient voltage drop and   overvoltage

within ± 15%

Voltage recovery time

within ± 3% of the value set, in less than   300 msec

Sensing

Single phase or Three phase

Parameters (can be programmed   via software)

VOLT, STAB, AMP and Hz can be set with   trimmers (default)

50/60Hz through a “jumper” (default)
