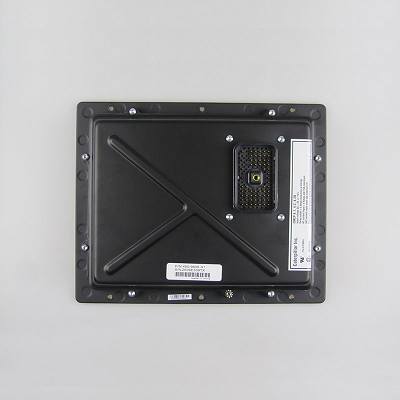

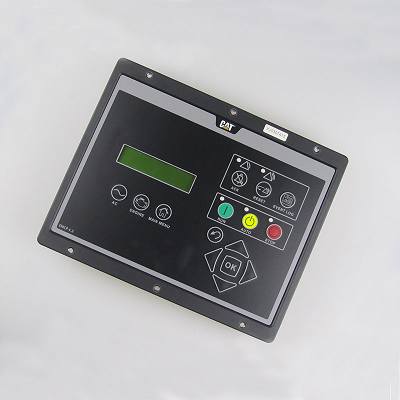

FG Wilson CATERPILLAR EMCP4.1 Controller is standard on 275 – 2500 kVA range
FG WILSON CATERPILLAR CAT EMCP4.1 EMCP4.2 EMCP4.3 EMCP4.4 Genset Generator Control Panel Controller
FG Wilson CATERPILLAR EMCP4.1 Controller is standard on 275 – 2500 kVA range
FG WILSON Powerwizard EMCP 4.1 4.2 4.3 4.4 Product Description.pdf
The FG Wilson EMCP 4 Series Controller is an advanced series of generator set control panels that monitors and controls all aspects of a generator set. It communicates within the generator set, and to Cat ET, via up to two CAN data links.
For customer or site communications, the EMCP 4 features dedicated SCADA data links.
EMCP Level | RS-485 | TCP/IP |
4.1 | - | - |
4.2 | √ | - |
4.3 | √ | √ |
4.3 | √ | √ |
EMCP 4 This is the new generation Caterpillar generator set control panel, consisting of a generator set control (GSC), and may have several other modules such as a voltage regulator module, annunciators, and input/output modules.
EMCP 4.1 and 4.2 Application and Installation Guide
LEBE0006, available from Cat PowerNet, under Products > EMCP Controls > EMCP 4
EMCP 4.3 and 4.4 Application and Installation Guide
LEBE0007, available from Cat PowerNet, under Products > EMCP Controls > EMCP 4
