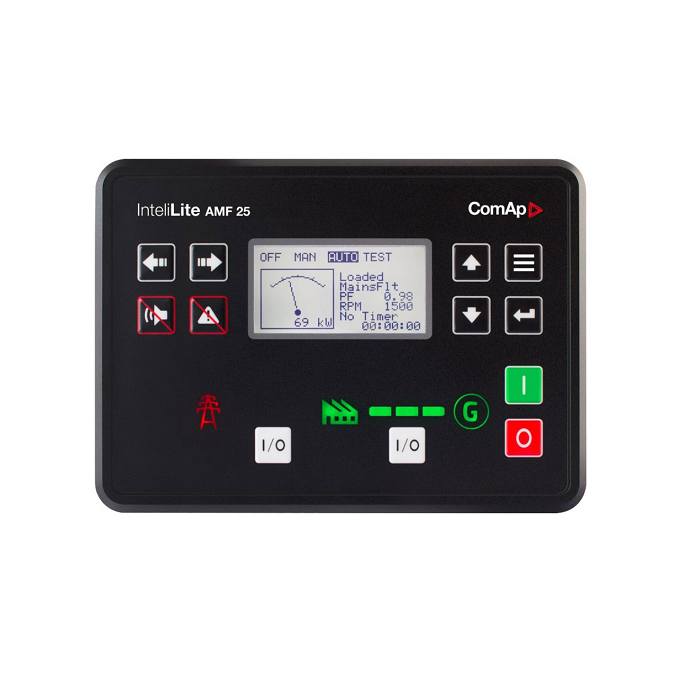

ComAp InteliLite AMF25 Generator Genset Controller

Advanced Auto Mains Failure (AMF) gen-set controller

Order Code: IL3AMF25BAA, IL3AMF25BLA

ComAp InteliLite AMF25 Datasheet.pdf

Genuine ComAp InteliLite AMF25 Controller with wholesale price.

Features for ComAp InteliLite AMF25 Genset Controller

New generation of one of the world's most successful controllers in its class.

Single gen-set controller for stand-by and prime power applications.

• Single gen-set controller for      stand-by and prime power applications

• Easy to install, configure and      use

• 5 languages in the controller

• 3 level of password in the ComAp AMF25 Genset Controller

• 3 sets of alternative      configuration

• Direct communication with EFI engines

• Tier 4 final ready

• Total remote monitoring and      control supported for ComAp InteliLite AMF25 Generator      Controller

• Cloud-based monitoring and      control via WebSupervisor

• Wide range of communication      capabilities including:

• connection       via RS232, RS485, CAN and on board USB

• internet       access using Ethernet, GPRS, 3G or 4G

• support       for Modbus (TCP/RTU) and SNMP (v1/v2c – including traps)

• Active SMS and emails in      different languages

• Geofencing and tracking      via WebSupervisor

• In-built PLC, complemented with      a PLC monitoring tool in InteliConfig

• 12 inputs and 8 outputs      on-board

• 2x 10 A binary outputs for      cranking and fuel solenoid

• More I/Os available over      plug-in or CAN modules (EM-BIO8-EFCP, Inteli AIN8, Inteli AIN8TC, Inteli      AIO9/1, Inteli IO8/8, IGS-PTM)

• Remote Annunciator over CAN

• Activation of outputs based on      inputs

• Load shedding, dummy load      capability

• Real time clock (with battery)

• Multipurpose flexible timers ComAp IL3 AMF25 Controller

• Flexible event based history      with up to 350 events

• True RMS measurement

• Comprehensive protections

• Possibility to disable      protections

• Available also in low      temperature version (Order code: IL3AMF25BLA)

• UL Listed
