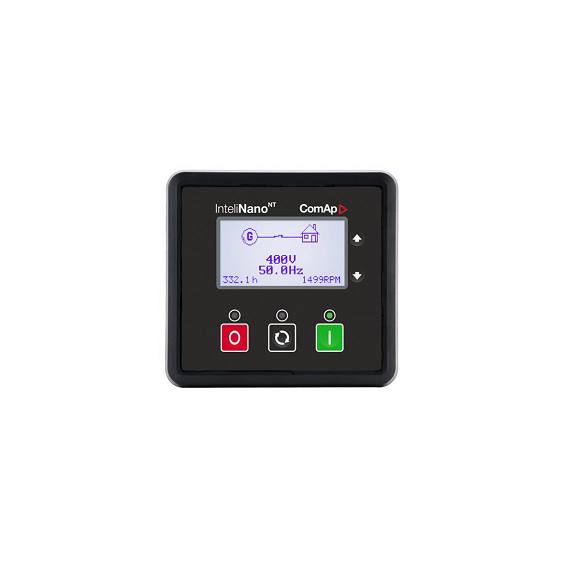

ComAp InteliNano NT Plus Genset Generator Controller

AMF and MRS controller with current measurement and support of EFI engines

Order Code: IN-NT PLUS

ComAp InteliNano NT Plus Datasheet.pdf

Genuine ComAp InteliNano NT Plus Controller with wholesale price.

Features for ComAp InteliNano NT Plus Controller:

• AMF and MRS controller in one model

• Stand-by and prime power application in one model

• 1/3 Phase generator voltage measurement (3/3 phase when used as MRS controller)

• Phase generator current measurement for ComAp InteliNano NT Plus Genset Controller

• Phase mains voltage measurement

• Connection type and voltage auto detect

• Various generator and engine protections

• Icon based interface supported for NT Plus ComAp Genset Controller

• Automatic or manual MCB and GCB control

• ‘Zero’ power consumption mode for ComAp NT Plus Generator Controller

• Battery voltage, service time and running hours indication

• All setpoints and I/Os configurable via front panel

• Ability to catch up on running engine (for manual engine start)

• Light Tower mode supported

• Event log (10 events)

• Up to 3 analog inputs (shared with binary inputs)

• COM terminal for analog measurement

• Up to 6 binary inputs (1 binary input is shared with binary output)

• 2 high side - high current outputs, 4 high side binary outputs

• D+ pre-excitation terminal

• ECU support (CAN J1939)

• USB one-cord power supply and programing

• License free PC configuration software (NanoEdit)

• Standard cut-out dimension 96 × 96 mm

• Outside dimension 118 × 108 mm

• IP65 rated (if optional gasket is used)
