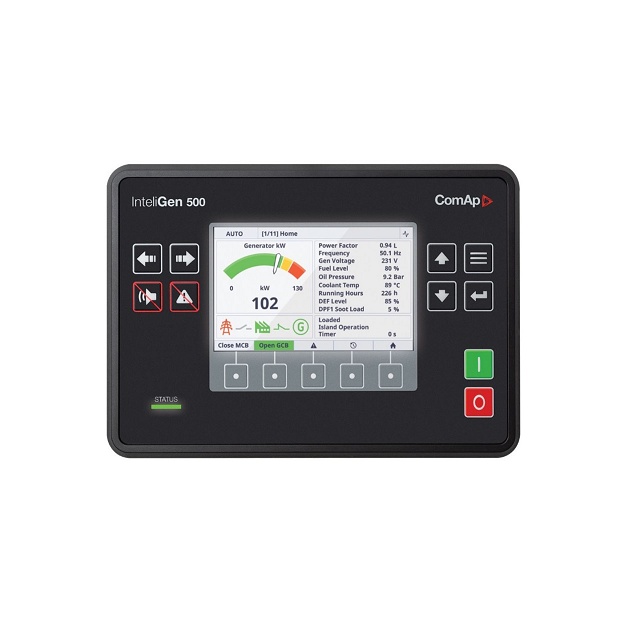

ComAp InteliGen 500 InteliGen500 Parallel Generator Genset Controller

Advanced paralleling gen-set controller with 5” color display

Order code: IG3500XXBAA

ComAp InteliGen 500 Parallel Controller Porudct Datasheet.pdf

Genuine ComAp InteliGen500 InteliGen 500 Controller with wholesale price.

Features for ComAp InteliGen 500 Parallel Genset Controller:

ComAp InteliGen 500 Controller is offering:

• 5" TFT with 800x480 px resolution

• All important information available       on well arranged measuring screens

• Easy parameters setting

• On-screen trends supported       by ComAp IteliGen 500 Genset Controller

• Easy switching between parallel to      mains or multiple genset applications

• Multiple gensets in parallel to mains       available together with InteliMains 210 controller

• The support of hybrid applications      together with InteliSys NTC Hybrid

• Start-up Synchronization

• Two types of synchronisations: Phase      Match or Slip Synchro

• Two types of Load/VAr Sharing:      Isochronous (CAN) or Droop, including Emergency Droop

• Direct communication with EFI engines      including Stage V and Tier 4 Final support

• Total remote monitoring and control

• InteliConfig for configuration,       single genset and multi genset/site monitoring

• WinScope for precise tuning of       PID regulators exactly according to gen-set type and application needs

• WebSupervisor for cloud based       monitoring and control of your whole gen-set fleet

• Wide range of communication and      connection capabilities including:

• USB, CAN, RS485 and Ethernet on board       supported by ComAp IteliGen 500 Parallel Controller

• USB master for configuration or       firmware upload or download

• RS232 and additional RS485 via       plug-in module

• Internet access by using of inbuilt       Ethernet or GPRS/3G/4G via plug-in modules

• Configurable Modbus RTU or TCP and       support of SNMP v2

• Remote display InteliVision 5.2

• Internal PLC support with PLC editor      and monitor included in InteliConfig

• Active SMS and emails in different      languages

• Geofencing and tracking via      WebSupervisor

• 4x switchable analog inputs (R/U/I)

• Option for additional inputs/outputs       supported by ComAp IteliGen 500 Generator Controller

• Flexible event based history with up      to 500 events

• Load shedding, dummy load capability

• Comprehensive gen-set protections

• Multipurpose flexible timers

• UL listed
