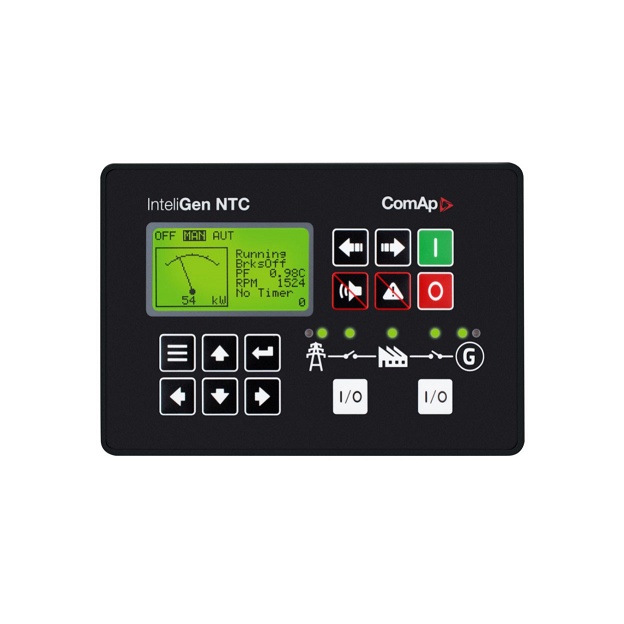

ComAp InteliGen NTC IG-NTC GC Parallel Generator Genset Controller

Complex Parallel Gen-set Controller

Order code: IG-NTC GC

ComAp InteliGen NTC IG-NTC GC Controller Datasheet.pdf

Genuine ComAp InteliGen NTC IG-NTC GC Controller with wholesale price.

Features for ComAp IG-NTC GC InteliGen NTC Parallel Genset Controller:

The ComAp InteliGen NTC Controller, an enhanced version of ComAp’s bestseller – InteliGen NT, is a high-end controller suitable for any complex single or multiple gen-sets paralleling application operating in standby or island mode. It is a perfect unit for mission-critical installations such as datacenters, power stations or rental applications. InteliGen NTC features ComAp’s powerful in-built PLC delivering high-level of flexibility, advanced history log and fully configurable protections.

Marine certified controller. Overview of ComAp marine approved products available here.

• Gen-set controller for single or      multiple generating sets operating in standby or parallel modes

• Support of engines with ECU      (Electronic Control Unit)

• Many communication options – easy      remote supervising and servicing

• To be used independently or in      conjunction with detachable / external colour displays InteliVision 5, InteliVision 8,  InteliVision 12Touch, or InteliVision 18Touch

• Gen-set performance log for easy      problem tracing supported by ComAp IteliGen NTC Controller

• Automatic synchronizing and power      control (via speed governor or ECU)

• AMF function, Baseload, Import / Export, Peak      shaving, Voltage and PF control (AVR)

• Generator measurement, Mains      measurement

• Inputs and outputs configurable for      various customer needs

• Controller redundancy supported      by ComAp IG-NTC GC Generator Controller

• Event-based history (up to 500 records)      with customer-selectable list of stored values; RTC; statistic values

• Integrated PLC programmable functions

• Integrated fixed and configurable      protections

• Selectable measurement ranges for AC      voltages and currents – 120 / 277 V, 0–1 / 0–5 A

• Secondary isolated RS232 / RS485      interface

• Support of external colour displays

• USB 2.0 slave interface supported       by ComAp IteliGen NTC IG-NTC GC Controller

• With Solution of Application support -      manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)

GeCon functionality is included in IGS NT Standard Firmware version 3.9 and newer!
