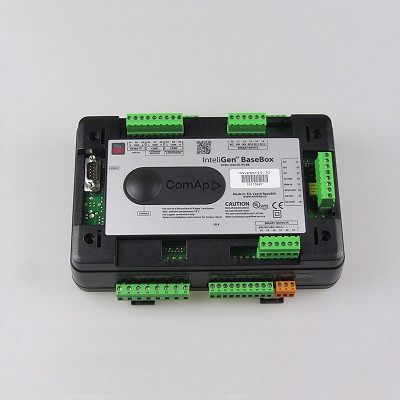

ComAp InteliGen NT BaseBox IG-NT-BB Parallel Generator Genset Controller

Complex Parallel Gen-set Controller with Detachable Colour Display

Order Code: IG-NT-BB

ComAp InteliGen NT BaseBox IG-NT-BB Controller Datasheet.pdf

Genuine ComAp InteliGen NT BaseBox Controller with wholesale price.

Features for ComAp IG-NT-BB InteliGen NT Parallel Genset Controller:

Marine certified controller.

• Gen-set controller for both single and      multiple gensets operating in standby or paralleling modes.  Overview      of ComAp marine approved products available here

• To be used indenpendently or in      conjunction with detachable / external colour displays InteliVision 5, InteliVision      8,  InteliVision 12Touch, or InteliVision 18Touch

• Support of engines with ECU      (Electronic Control Unit)

• Complete integrated gen-set solution      and signal sharing via CAN bus – minimum external components needed

• Many communication options – easy      remote supervising and servicing

• Gen-set performance log for easy      problem tracing

• Automatic synchronizing and power      control (via speed governor or ECU)

• AMF function, Baseload, Import /      Export, Peak shaving, Voltage and PF control (AVR)

• Generator measurement: U, I, Hz, kW,      kVAr, kVA, PF, kWh, kVAhr

• Mains measurement: U, I, Hz, kW, kVAr,      PF

• True RMS (TRMS) is used with Voltage,      Current and Power measurement

• Inputs and outputs configurable for      various customer needs

• Bipolar binary outputs - possibility      to use BO as High or Low side switch

• RS232 interface with Modbus support;      Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus      interface

• Controller redundancy

• Event-based history (up to 1000      records) with customer-selectable list of stored values; RTC; statistic      values

• Integrated PLC programmable functions

• Integrated fixed and configurable      protections

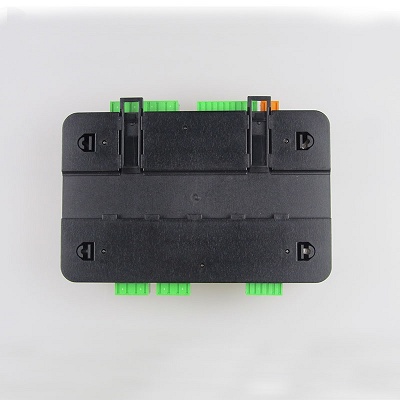

• DIN-Rail mount

• Customized firmware solution

• With Solution of Application support -      manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank      Controller)

GeCon functionality is included in IGS NT Standard Firmware version 3.9 and newer!
