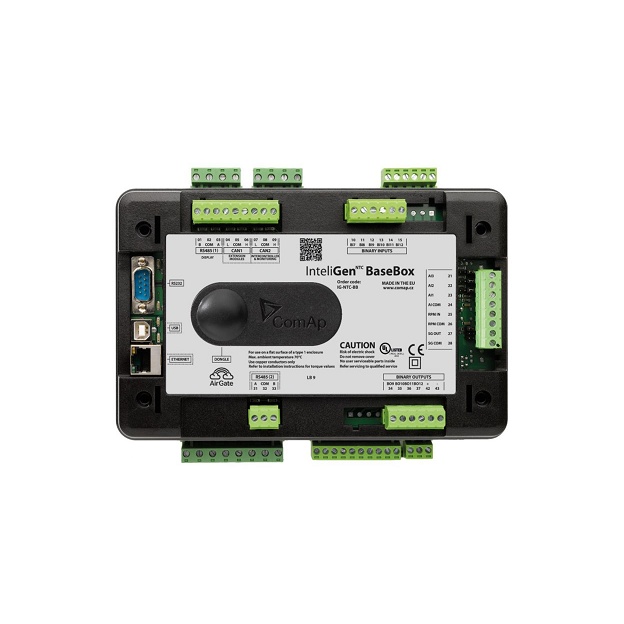

ComAp InteliGen NTC BaseBox IG-NTC-BB Parallel Generator Genset Controller

Complex Parallel Gen-set Controller with Detachable Colour Display

Order Code: IG-NTC-BB

ComAp InteliGen NTC BaseBox IG-NTC-BB Controller Datasheet.pdf

Genuine ComAp InteliGen NTC BaseBox Controller with wholesale price.

Features for ComAp IG-NTC-BB InteliGen NTC Parallel Genset Controller:

Marine certified controller.

• InteliGenNTC BaseBox is a      comprehensive gen-set
       controller for both single and multiple gen-sets operating
       in standby or paralleling modes. The modular
       construction allows fast and intuitive installation with the
       potential for many different extension modules designed
       to suit individual customer requirements

• Support of engines with ECU      (Electronic Control Unit)

• Complete integrated gen-set      solution and signal sharing via CAN bus – minimum external components      needed

• Many communication options -      Ethernet connection (RJ45), USB 2.0 slave interface, 1× RS232 /      2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN /      CDMA modem communication support; SMS messages; ECU Modbus interface;      isolated secondary RS485

• AirGate support – easy remote      supervising and servicing

• Automatic synchronizing and      power control (via speed governor or ECU)

• AMF function, Baseload, Import/Export,      Peak shaving, Voltage and PF control (AVR)

• Generator measurement: U, I,      Hz, kW, kVAr, kVA, PF, kWh, kVAhr

• Mains measurement: U, I, Hz,      kW, kVAr, PF

• Selectable measurement ranges      for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A

• True RMS (TRMS) is used with      Voltage, Current and Power measurement

• Inputs and outputs configurable      for various customer needs

• Bipolar binary outputs -      possibility to use BO as High or Low side switch

• Controller redundancy

• Event-based history (up to 1000      records) with customer-selectable list of stored values; RTC; statistic      values

• Integrated PLC programmable      functions

• Integrated fixed and      configurable protections

• DIN-Rail mount

• Customized firmware      solution

• With Solution of Application support -      manage up to 992 Gen-sets in Extended Multiple Gen-set
