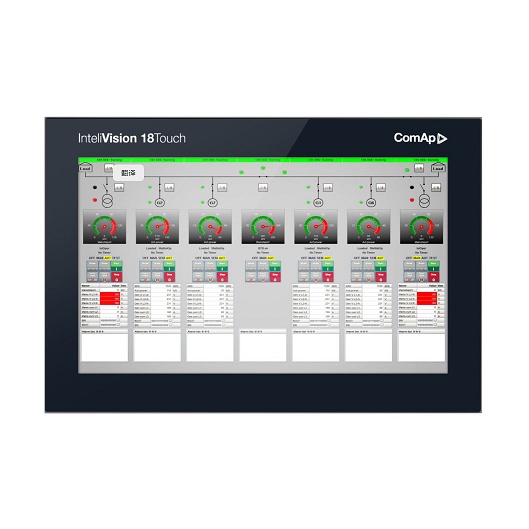

ComAp InteliVision 18Touch 18.5" Colour Display Unit Controller

18.5" Colour Display Unit

Order code: RD31840PBIE

ComAp InteliVision 18Touch Colour Display Unit Datasheet.pdf

Genuine ComAp RD31840PBIE InteliVision 18 Touch Colour Display Unit Controller

This is a new model and now available for orders from 2018.

Features for ComAp InteliVision 18 Touch RD31840PBIE Colour Display Unit Controller:

The new InteliVision 18Touch is 18,5“ touchscreen display unit perfectly suitable for the most complex applications and also the simple ones. With InteliVision 18Touch you can easily monitor and control sites consisting of many controllers or you can use it for your CHP or Hybrid application.

• Panel suitable for use with a wide range of ComAp controllers

• Successor to the InteliVision 17Touch

• Display for monitoring and control of the entire site

• Possible to use for remote monitoring and control through Internet

• 18,5“ LED backlit projected capacitive touchscreen with a resolution      of 1366 × 768 pixels

• Operating temperature extends from -10 °C to +60 °C

• Powerful Intel® Celeron® quad core processor J1900

• 3× USB, 2× mini-PCIe sockets, 1× CFast, 2× RS232/422/485/, 2x RJ45

• 32 GB SSD

• Front protection compliant with IP66

• Mounting support: panel/wall/stand/VESA 100mm × 100mm

• Power input 12-30 VDC

• ComAp PC tools preinstalled (IGS-LOG included for free)

• Setpoints configurable from one device

• History logs of all controllers

• Fullscreen mode with lock protection/PIN

• Onscreen keyboard

• Windows operating system

• Same compatibility as in case of InteliVision 17Touch - majority of      the ComAp controllers
