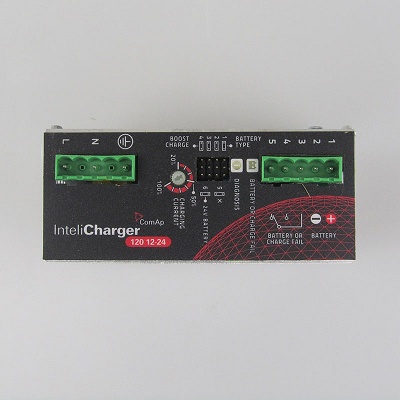

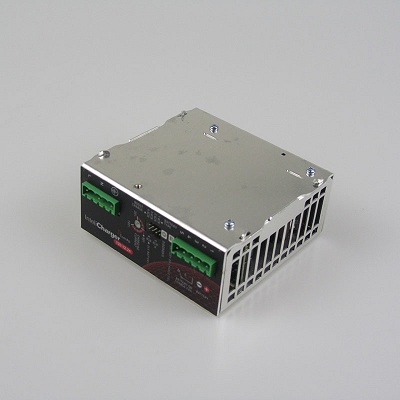

ComAp InteliCharger ICHG-120 120 12-24 24V 5A 12V 6A Automatic Battery Charger

12V 6A

24V 5A



introduction

InteliCharger ICHG-120 120 12-24 Automatic Battery Charger

Order code:  ICHG-120 12-24



Genuine ComAp Battery Charger ICHG-120 12-24 with wholesale price.

ComAp InteliCharger ICHG-120 120 12-24 24V 5A 12V 6A Automatic Battery Charger



InteliCharger ICHG-120 120 12-24 Automatic Battery Charger

Order code:  ICHG-120 12-24

ComAp ICHG-120 12-24 Battery Charger Datasheet.pdf



Genuine ComAp Battery Charger ICHG-120 12-24 with wholesale price.


Features for InteliCharger ICHG-120 120 12-24 ComAp Automatic Battery Charger:

The ComAp InteliCharger 120 12-24 is an advanced, automatic, multi-stage battery charger using “Switched mode technology” and “Battery care philosophy”, suited to meet the most advanced requirements of battery manufacturers.

Main Characteristics:

  • 24 V / 5 A or 12 V / 6 A nominal output (dual voltage)

  • Adjustable voltage and current output

  • High efficiency ≥ 90 %

  • Universal AC input range

  • Automatic battery status diagnosis

  • Microprocessor controlled charging algorithm

  • Four charging stages

    • Recovery

    • Bulk

    • Absorption

    • Float.

  • Protections

    • short circuit

    • overload

    • over temperature

    • reverse battery

    • battery under voltage

  • Blink code diagnostic LED

  • Fail alarm relay, resp. signal output terminal for discharged or      damaged battery and charging fail signaling.

  • Battery support:

    • Open Lead Acid

    • Sealed Lead Acid

    • Lead Gel

    • NiCd–NiMH

  • Charger can be used as a standalone power supply

  • Naturally cooled

  • IP20 protection

  • DIN rail mounting

  • UL Recognized

Suitable for following applications:

  • Standby generators

  • Prime power Generators

  • Engine driven pumps/compressors

  • DC breaker tripping systems

  • Automotive or Marine

  • Alarm systems

  • Industrial control systems

  • Robust PSU

  • Electric vehicles

  • Switchgear
