Position:Home > Products > Battery Charger > ComAp-Original

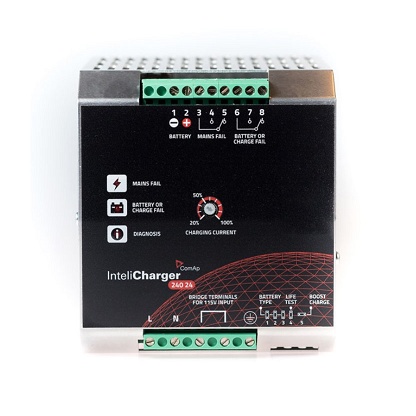

ComAp InteliCharger 240 24 ICHG-240 24 24V 10A Automatic Battery Charger

24V

10A



introduction

ComAp InteliCharger 240 24 Automatic Battery Charger

Order code: ICHG-240 24



Genuine ComAp Battery Charger ICHG-240 24 with wholesale price.

ComAp InteliCharger 240 24 ICHG-240 24 24V 10A Automatic Battery Charger



ComAp InteliCharger 240 24 Automatic Battery Charger

Order code: ICHG-240 24

ComAp ICHG-240 24 Battery Charger Datasheet.pdf



Genuine ComAp Battery Charger ICHG-240 24 with wholesale price.


Features for InteliCharger ICHG-240 24 ComAp Automatic Battery Charger:

The InteliCharger 240 10 is an advanced, automatic, multi-stage battery charger using “Switched mode technology” and “Battery care philosophy”, suited to meet the most advanced requirements of battery manufacturers.

Main Characteristics:

  • 24 V / 10 A nominal output

  • Adjustable voltage and current output

  • High efficiency ≥ 88 %

  • Universal AC input range

  • Automatic battery status diagnosis

  • Microprocessor controlled charging algorithm

  • Four charging stages

    • Recovery

    • Bulk

    • Absorption

    • Float

  • Protections

    • short circuit

    • overload

    • over temperature

    • reverse battery

    • battery under voltage

  • Blink code diagnostic LED

  • Fail alarm relays, resp. signal output terminal for

    • discharged or damaged battery and charging fail signaling

    • Mains power input fail signaling

  • Battery support

    • Open Lead Acid

    • Sealed Lead Acid

    • Lead Gel

    • NiCd–NiMH

  • Charger can be used as a standalone power supply

  • Naturally cooled

  • IP20 protection

  • DIN rail mounting

Suitable for following applications:

  • Standby generators

  • Prime power Generators

  • Engine driven pumps/compressors

  • DC breaker tripping systems

  • Automotive or Marine

  • Alarm systems

  • Industrial control systems

  • Robust PSU

  • Electric vehicles

  • Switchgear
