Smartgen Genset Generator Controller HGM420N
introduction

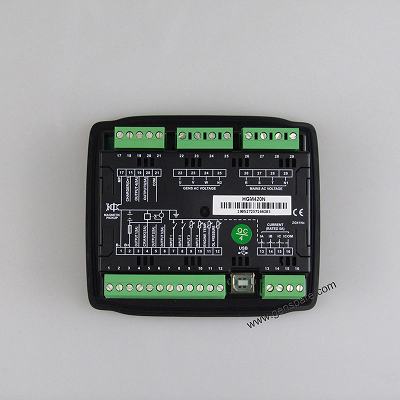

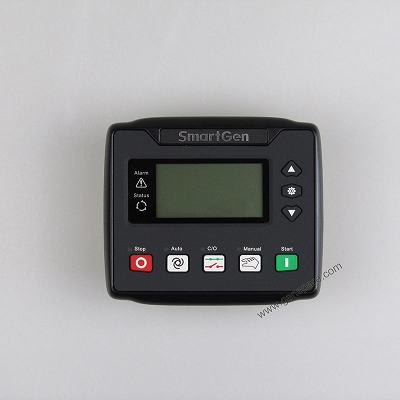

Original Smartgen HGM420N Genset Controller
Smartgen Genset Generator Controller HGM420N
Original Smartgen HGM420N Genset Controller
HGM410N_HGM420N User Manual.PDF
Smartgen HGM420N genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and “three remote” (remote control, remote measuring and remote communication; SG485 module must be fitted). It fit with LCD display, optional languages interface (Chinese, English, Spanish, Turkish, Russian and French), and it is reliable and easy to use.
Product Code：6010058
Power Supply：DC(8～35)V
Case Dimensions：126*109*44(L*W*H)(mm)
Panel Cutout：110*90(mm)
Operating Temp. ：(-25~70)℃
Weight：0.26kg
HGM400N series controller has two types:
HGM410N: ASM (Automatic Start Module)，it controls generator to start/stop by remote signal;
HGM420N: AMF (Auto Mains Failure), updates based on HGM420N, moreover, has mains electric quantity monitoring and mains/generator automatic transfer control function, especially for automatic system composed by generator and mains.
CHARACTERISTICS for HGM420N Smartgen Controller:
Working Voltage | DC8. 0V to 35. 0V, Continuous Power Supply. |
Overall Consumption | <3W(Standby mode: ≤2W) |
AC voltage Input: 3 Phase 4 Wire 3 Phase 3 Wire Single phase 2 Wire 2 Phase 3 Wire | AC15V - AC360V (ph-N) AC30V - AC620V (ph-ph) AC15V - AC360V (ph-N) AC15V - AC360V (ph-N) |
Alternator Frequency | 50Hz/60 Hz |
Speed Sensor Voltage | 1.0V to 24V (RMS) |
Speed Sensor Frequency | 10,000 Hz (max) |
Start Relay Output | 5A DC28V power supply |
Auxiliary Relay Output 1 | 5A DC28V power supply |
Auxiliary Relay Output 2 | 5A DC28V power supply |
Auxiliary Relay Output 3 | 5A DC28V power supply |
Auxiliary Relay Output 4 | 5A AC250V voltage-free output |
Auxiliary Relay Output 5 | 5A AC250V voltage-free output |
Overall Dimensions | 126mm x 109mm x 44mm |
Panel Cutout | 110mm x 90mm |
CT Secondary Current | 5A (rated) |
Working Condition | Temperature: (-25~70)ºC; Humidity: (20~93)%RH |
Storage Condition | Temperature: (-25~+70)ºC |
Protection Level | IP55 Gasket |
Insulation Intensity | Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
Weight | 0.26kg |
