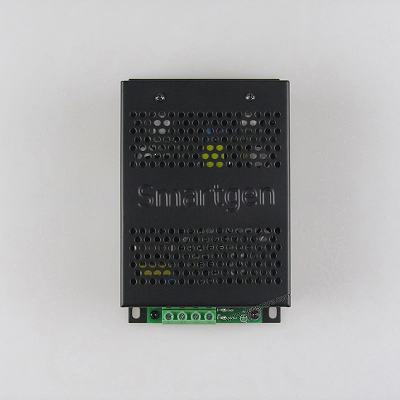

Smartgen Generator Genset Battery Charger BAC06A
12V
6A
introduction
Original Smartgen BAC06A Generator Battery Charger with wholesale price.
12V 6A Genset Generator Battery Charger
Smartgen Generator Genset Battery Charger BAC06A
Original Smartgen BAC06A Generator Battery Charger with wholesale price.
12V 6A Genset Generator Battery Charger
Smartgen BAC06A_BAC06V Automatic Battery Charger User Manual.pdf
BAC06A Smartgen Genset switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.
Product Code：6070001
Power Supply：(100~240)V
Case Dimensions：143*96*55(mm)
Operating Temp. ：(-30~+55)℃
Weight：0.65kg
Input | Nominal AC Voltage | AC (95～280)V | |||
Max. AC Voltage | AC (90～305)V | ||||
AC Frequency | 50Hz/60Hz | ||||
Max. Input Current | 2A | ||||
Max. Efficiency | 85% | ||||
Output | Charging Current | 4A～6A,(Error±2%) | 2A～3A,(Error±2%) | ||
Factory Charging Current | 6A | 3A | |||
Max. Power | 85W | ||||
Min. Voltage | 7.5V | ||||
No-load Voltage | 13.8V, (Error ±1%) | 27.6V, (Error ±1%) | |||
No-load power consumption | <3W | ||||
Insulation | Insulation Resistance | Between input and output, input and shell both are: DC500V 1min RL≥500MΩ | |||
Insulation Voltage | Between input and output, input and shell both are: AC1500V 50Hz 1min Leakage current: IL≤3.5mA。 | ||||
Working Conditions | Working Temperature | (-30～55)°C | |||
Storage Temperature | (-40～85)°C | ||||
Working Humidity | 20%RH～93%RH (No condensation) | ||||
Profile | BAC06A | Weight | 0.65kg | ||
Dimension | 143mm×96mm×55mm (Length*Width*Height) | ||||
BAC06V | Weight | 0.69kg | |||
Dimension | 154.4mm×94.5mm×56mm (Length*Width*Height) | ||||
