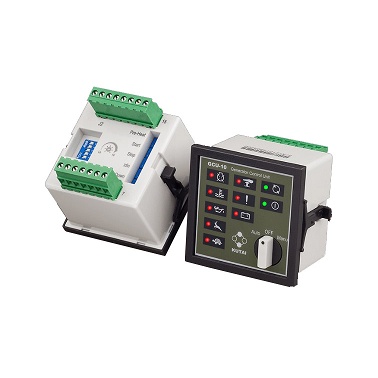

Kutai GCU-10 GCU10 Generator Control Unit



introduction

Kutai Generator Control Unit GCU-10 GUC10

Genuine Kutai GCU-10 Generator Control Unit with wholesale price.

Kutai GCU-10 GCU10 Generator Control Unit



Kutai Generator Control Unit GCU-10 GUC10

Genuine Kutai GCU-10 Generator Control Unit with wholesale price.



Kutai GCU-10 GCU10 Generator Control Unit.pdf


The Kutai GCU-10 is an economical genset controller, giving high reliability for much less than similar controllers. It has adjustable settings to enable it to work with any type of generating set and comply with different engine conditions and protections. Optional 12V/24V relay boards (GCU-11R) are available for simplifying wiring and connections.



Features



Microprocessor based design

LED status indicator with graphic interface

Modular design with easy installation

Adjustable settings to suit wide array of generator set application

UV protection with minimum waterproofing (IP51)

Provide IDLE control for Elec. governors

Five adjustable time delay potentiometers

Five DIP switches for configuration

Optional GCU-11R (12/24Vdc) relay module to simplify connection and provide additional protection to controller



Specifications



DC Supply   DC Voltage 9 to 36 Vdc

Alternator Input Range    AC Voltage 5 to 300 Vac

Frequency 50/60 Hz

Fuel Solenoid Signal Output  5 Amp @ 12/24 Vdc

Start Signal Output   5 Amp @ 12/24 Vdc

Warm up Signal Output   5 Amp @ 12/24 Vdc

Accessory " ON " Output 5 Amp @ 12/24 Vdc

Idle Control Conductor Capacity  5 Amp @ 12/24 Vdc

Power Consumption Under 3 VA on Auto

Protection & Alarm Status Indicators

Start Failure

High Coolant Temperature

Low Oil Pressure

Overspeed

Underspeed

Emergency Stop

Extra Prog. Input

Low Battery Voltage

Adjustable Timers

Engine Pre-Heat 2 to 30 seconds

Starter Cranking Time     1 to 15 seconds

Energize to STOP      1 to 30 seconds

Engine Idle (Governor)    0 to 300 seconds

Engine Cool-down    0 to 300 seconds

Environment

Operating Temperature   -20 to +60 °C

Relative Humidity      Max. 90%

Physical Specifications

Panel Cut-Out    66.0 x 66.0 +/-0.5 mm

Dimensions 72.0 (H) x 72.0 (W) x 50.0 (D) mm

Weight  166 g +/-2%
