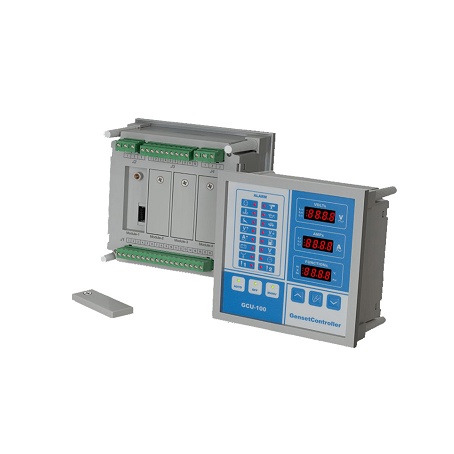

Kutai GCU-100 GCU100 Manual Key Start Genset Generator Control Unit



introduction

Kutai Generator Automatic Control and Protection Module GCU-30 GUC30



Genuine Kutai GCU100 GCU-100 Generator Control Unit with wholesale price.

Kutai GCU-100 GCU100 Manual Key Start Genset Generator Control Unit



Kutai Generator Automatic Control and Protection Module GCU-30 GUC30

Genuine Kutai GCU100 GCU-100 Generator Control Unit with wholesale price.



Kutai GCU-100 GCU100 Genset Control Protection Module Brochure.pdf


The GCU-100 is a programmable Automatic Control and Protection Module suitable for all makes and types of generators. The GCU-100 is equipped with graphical warning signals and three separate LED displays for real time 3 phase voltage, AC current, generator frequency, battery volt, and running hours. The GCU-100 allows customization of setting values for specific generator protections and settings and also allows remote communication and monitoring.



Features

Micro-Processor auto control and protection

Three sets of high illuminating LED display suitable for indoor and outdoor use

Full function modularized design for easy installation

All functions setting can be done directly on GCU-100 no need for PC connection *1

All settings are recorded into the internal (EEPROM) and protected from erasure even without battery

Optional USB/RS485/Ethernet remote communication functions

Free APP for monitor and operate your ATS and genset directly from your smart phone

Easy to understand graphical warning signals

Din rail terminal for easy installation

IP65 waterproof front panel



Specifications



Power Input

Voltage 9 to 35 Vdc (12V/24V)  Sensing Input

Voltage 15 to 510 Vac

Frequency 50/60 Hz

Power Dissipation    Max. 5 watts

MPU Signal Input      Voltage +/-2 to +/-70 Vac

Frequency 100 Hz Min. 10K Hz Max.

CT Specification Burden Above 2.5 VA

CT Secondary Ratio  5A

Protection and Alarm Status Indicators

Engine Start Failure

Emergency Stop Activated

High Engine Temperature

Low Engine Oil Pressure

Engine Over and Under Speed

Abnormal AC Volt

Generator Over Load

Low Fuel Level

Charge Motor Failure

Abnormal DC Volt

Scheduled Maintenance Warning

Free Programmable Warning

Panel Display

Fixed or Circulating Full Phase Voltage, Current and Frequency

Engine Operation Hours

DC Voltage (Battery)

Delay Countdown Display



Physical Specifications  137.0 x 137.0 +/-0.5 mm

Dimension   147.8 (L) x 147.8 (W) x 62.3 (H) mm

Weight  604 g +/-2%
