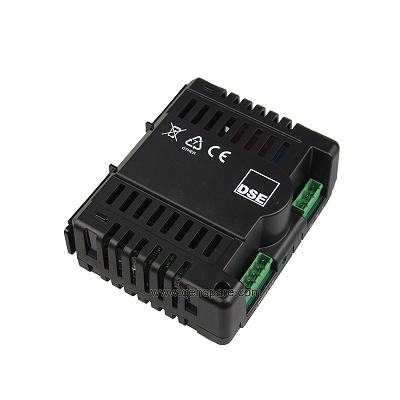

Deep Sea DSE 9701 Genset Battery Charger DSE9701

DSE9701- DSE9702 Specification Download.pdf

DSE9701

Vertical 24 volt 5 amp Battery Charger

The DSE9701 24 volt 5 amp switch-mode battery charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification. The charger operates during cranking and running and accepts multiple AC voltage connections.

DIN RAIL MOUNTED 48 mm x 133 mm x 110 mm (1.9” x 5.2” x 4.3”)

CHASSIS MOUNTED 48 mm x 153 mm x 112 mm (1.9” x 6.0” x 4.4”)

WEIGHT 0.4kg

PRODUCT VARIANTS

9701-01 - Vertical 24V 5A Battery Charger (90-305v 50/60Hz)

Universal Battery Charger:

CH2804: 12V / 24V, 4A

CH2806: 12V / 24V, 6A

CH2804: 12V / 24V, 10A

Deep Sea / DSE Battery Charger:

DSE9130: 12V, 5A

DSE9150: 12V, 3A

DSE9255: 24V, 5A

DSE9701: 24V, 5A

DSE9702: 12V, 5A

DSE9470MKII: 12V / 24V, 10A

ComAp Battery Charger:

InteliCharger 120 12-24: 12V, 6A or 24V, 5A

InteliCharger 120 12: 12V, 10A

InteliCharger 240 24: 24V, 10A

InteliCharger 480: 24V, 20A

InteliCharger 65 12-A: 12V, 6A

InteliCharger 65 24-A: 24V, 3A

InteliCharger 65 12-AF: 12V, 6A

InteliCharger 65 24-AF: 24V, 3A

Smartgen Battery Charger:

BAC1203: 12V, 3A

BAC06A, 12V: 12V, 6A

BAC06A, 24V: 24V, 3A

BAC1205N: 12V, 5A

BAC1210: 12V, 10A

BAC2403N: 24V, 3A

BAC2405: 24V, 5A

BAC2408: 24V, 8A

BAC2410: 24V, 10A

BACM1206: 12V, 6A

BACM2406: 24V, 6A

BACM2410: 24V, 10A

BACM2420: 24V, 20A
