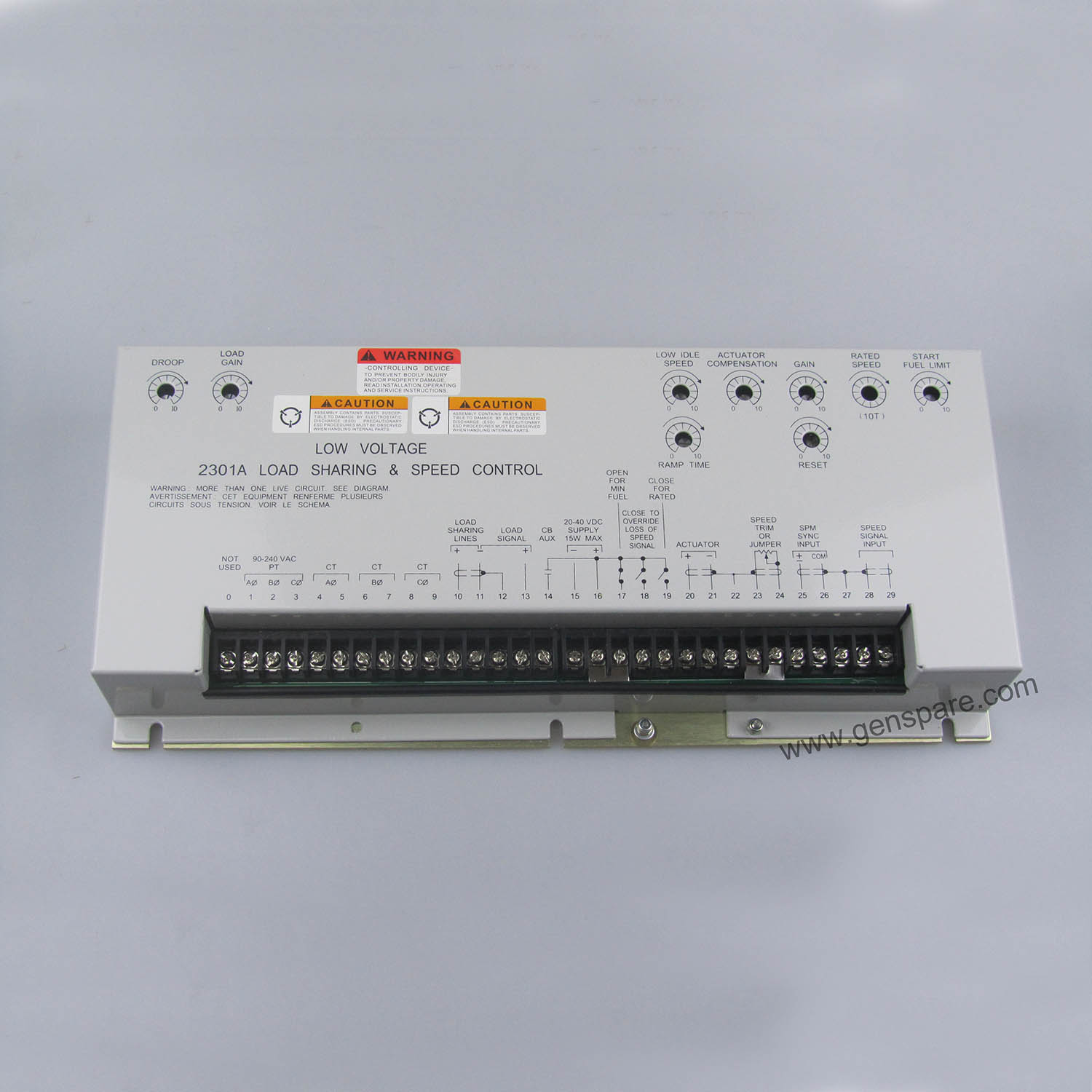

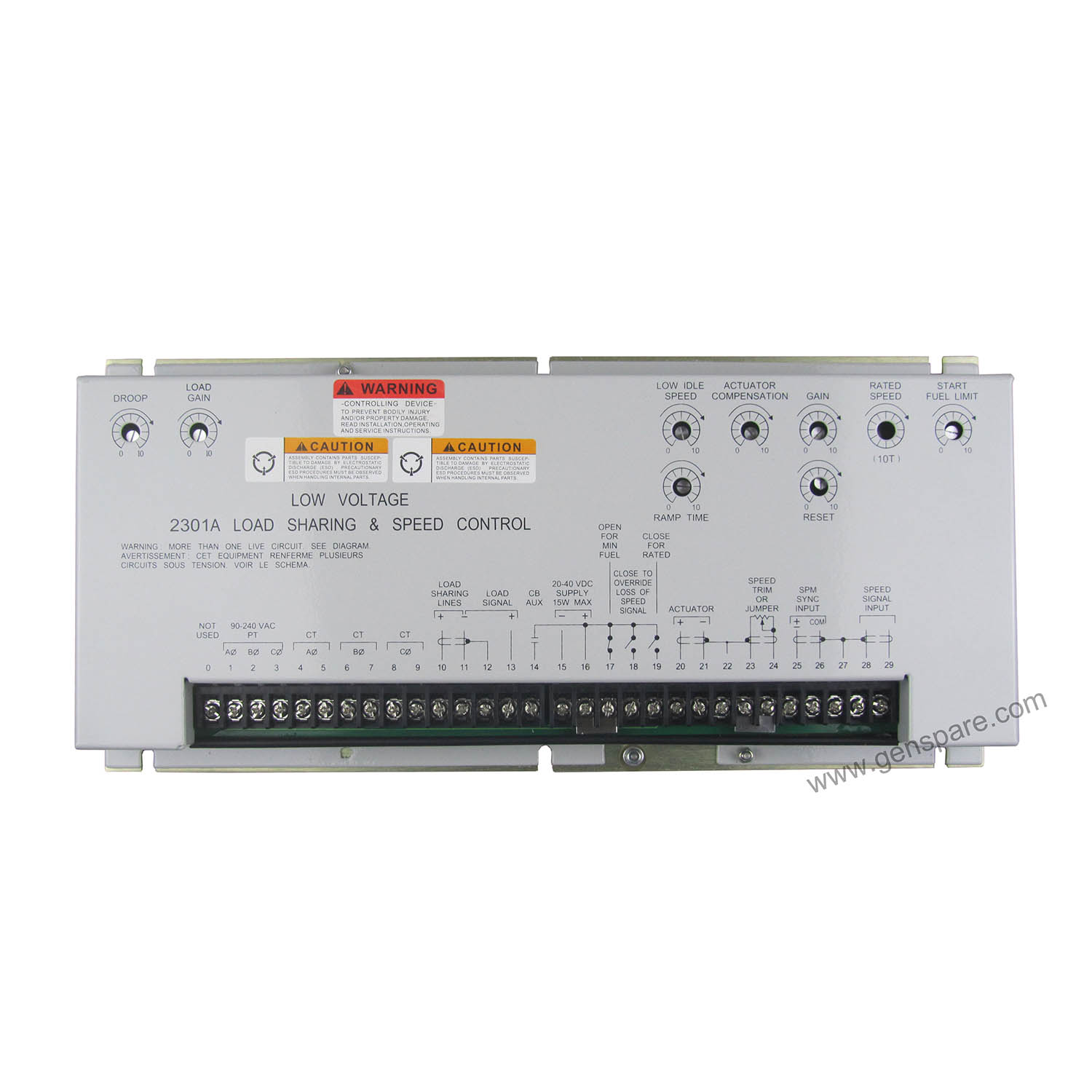

WOODWARD 2301A 9907-018 LOAD SHARING SPEED CONTROL GOVERNOR MODULE

WOODWARD 2301A 9907-018 LOAD SHARING AND SPEED CONTROL MODULE INSTALLATION MANUAL.pdf

We have Replacement Model for Woodward 2301A 9907-018 in our regulalar stock!

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.

Replaced Part Number: 9907-018

Replaced Brand: Woodward

Reference Price: 609$ ~ 758$

Reference price for genuine Woodward 9907-018: 1600$

Warranty Period: 1 year

The Woodward 9907-018 series of the Woodward 2301A controls load sharing and speed of generators driven by diesel or gasoline engines, or steam or gas turbines.

These power sources are referred to as “prime movers” throughout this manual.

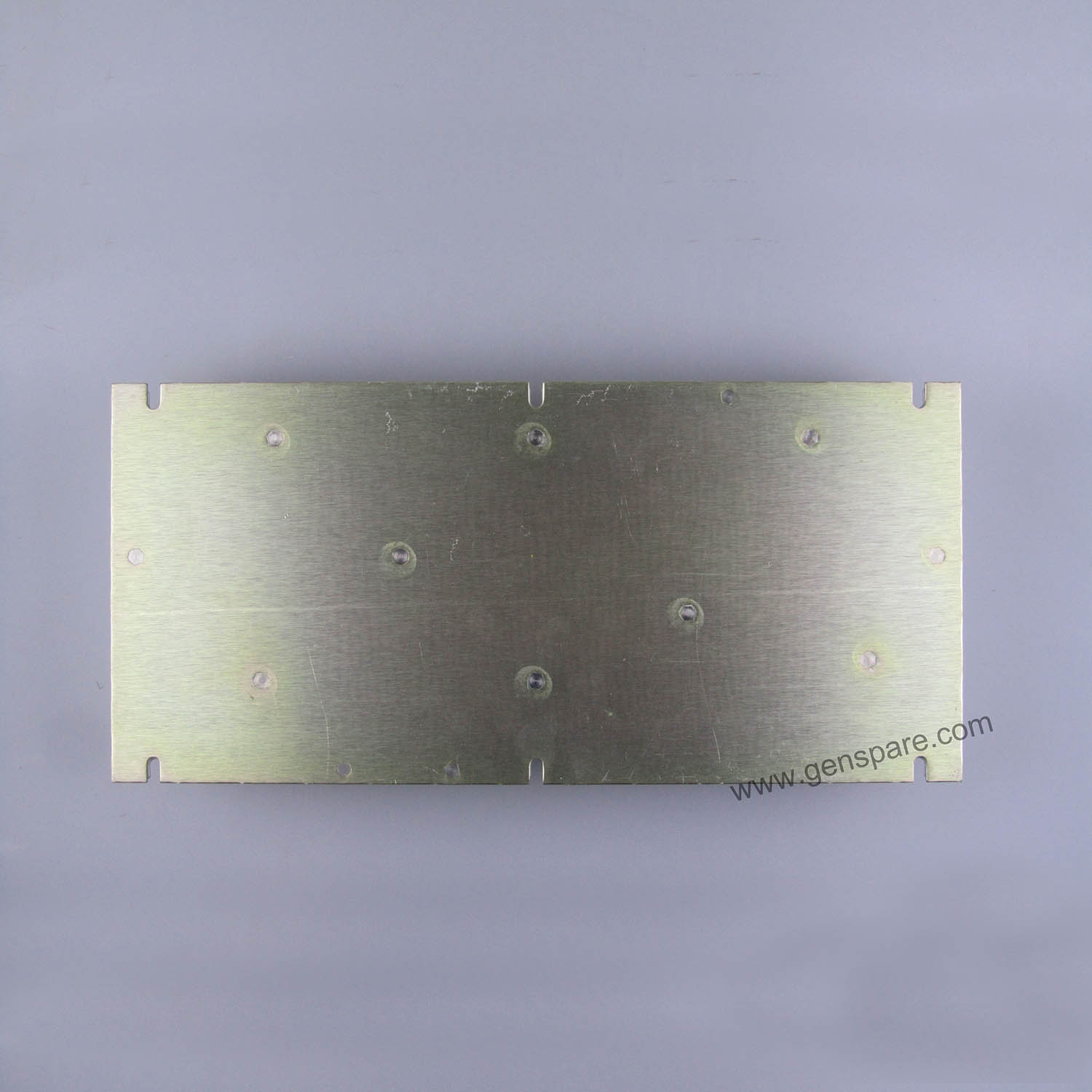

The control is housed in a sheet-metal chassis and consists of a single printed circuit board. All potentiometers are accessible from the front of the chassis.

 The 2301A Woodward Load Sharing Speed Control Module provides control in either isochronous or droop mode.

The isochronous mode is used for constant prime mover speed with:

 Single-prime-mover operation;

Two or more prime movers controlled by Woodward load sharing control systems on an isolated bus;

Base loading against an infinite bus with the load controlled by an Automatic Power Transfer and Load (APTL) Control, an Import Export Control, a Generator Loading Control, a Process Control, or another load-controlling accessory.
