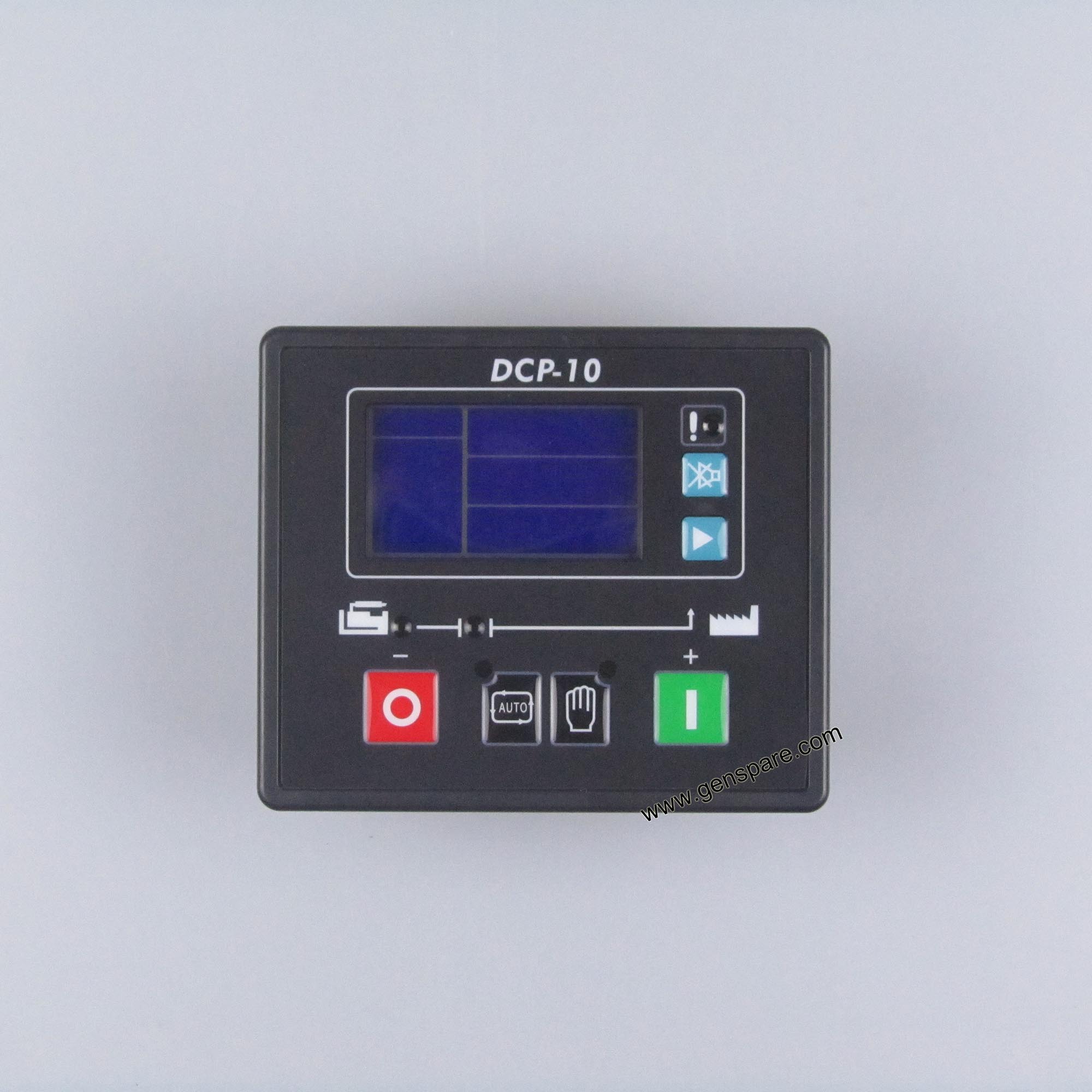

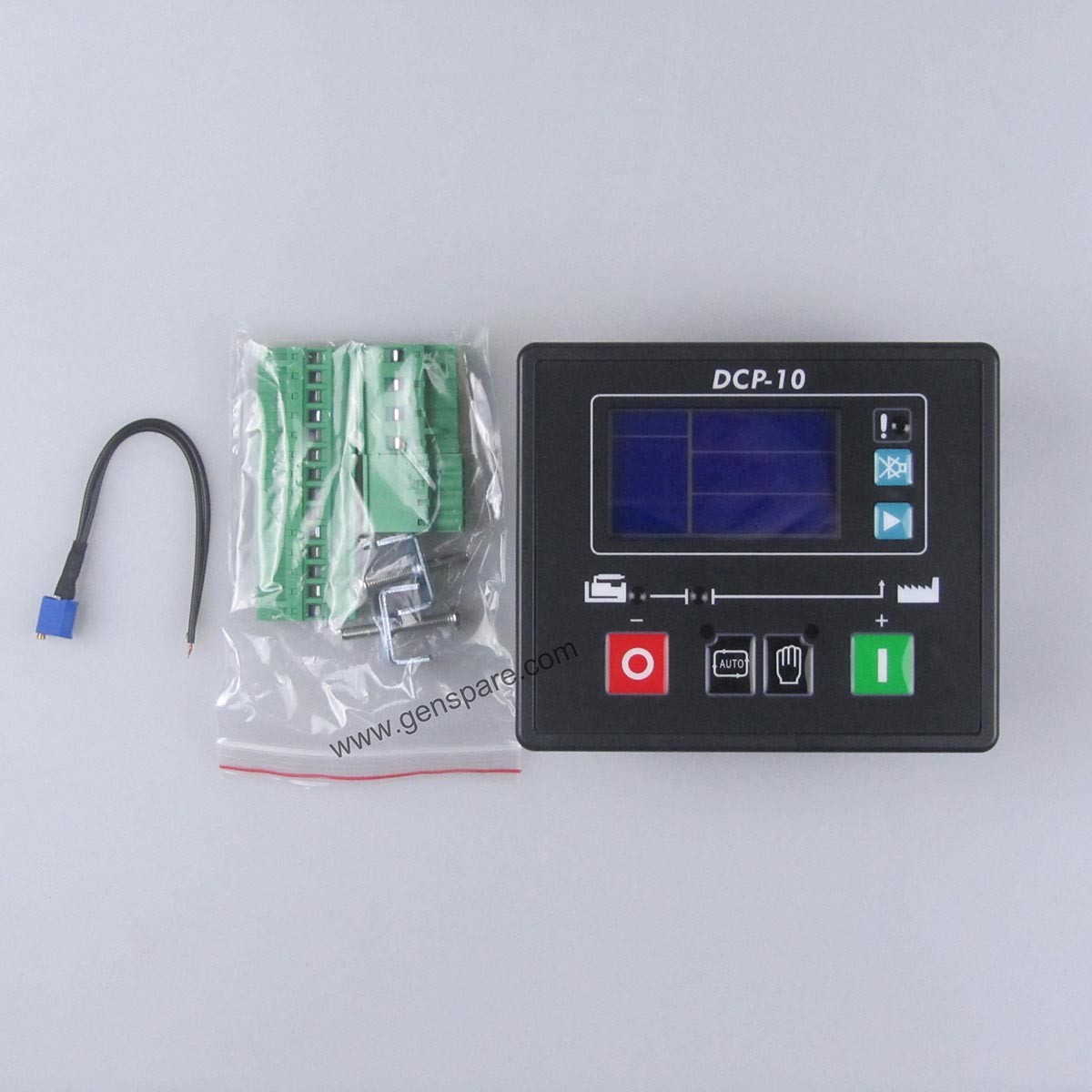

FG WILSON DCP10 Genset Generator Control Panel Controller DCP-10

FG Wilson DCP-10 Controller is standard on 5.5 – 220 kVA range

FG Wilson DCP-10 Genset Controller Description Download.pdf

FG WILSON DCP-10 GENSET DATASHEET DOWNLOAD.pdf

The Brands/ Part Numbers mentioned here are for reference purpose only, our parts can exactly replace the original ones.

The FG Wilson DCP-10 Genset Controller range allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters.

FG Wilson DCP10 Genset Controller digital control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED’s using universally recognised symbols, eliminating the need for complex instructions or language settings.

FG WISLON DCP-10 Control Panel Benefits:

• Automatic start control module

• Integrated metering & controls

• Monitoring, protection, operational status, fault conditions and metering displayed via LCD & LED’s

• Configuration of parameters via licence free software

• Robust electronics package

• Symbols for simple, intuitive control

FG WISLON DCP-10 Controller Features:

• Configuration of parameters by front panel push buttons or by PC via mini USB interface (DCP-10) or communication software (DCP-20)

• True RMS Voltage Sensing

• Engine & AC monitoring

• Run / Auto keys with LED indicators

• Under / Over voltage protection

• Larger 128×64 graphic LCD (DCP-20 only)

• RS485, RS232 or USB port for remote communication (DCP-20 only)

• Power metering (DCP-20 only)
