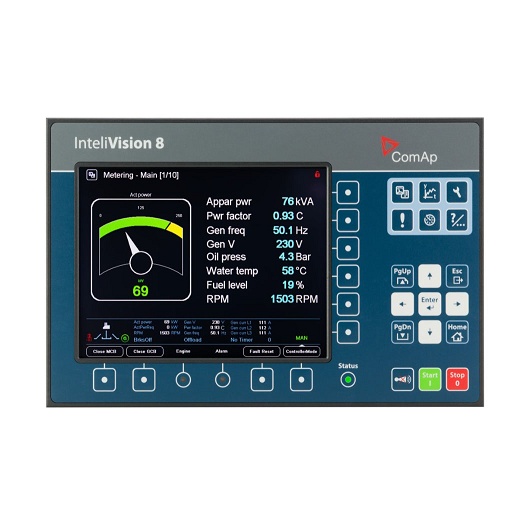

ComAp InteliVision 8 8" Colour Display Unit Controller

8" Colour Display Unit

Order code: INTELIVISION 8

ComAp InteliVision 8 Colour Display Unit Datasheet.pdf

Genuine ComAp INTELIVISION 8 Colour Display Unit Controller

Features for ComAp InteliVision 8 Colour Display Unit Controller:

InteliVision 8, industrial operator panel equipped with 8” colour screen, is dedicated together with the main ComAp controller to visualise and control single gen-set in various applications.

• 8" colour TFT display with resolution of 800 x 600 px

• PLUG and PLAY operation (auto configuration based on controller      application)

Supported controllers :

• InteliGen GSC

• InteliGen GSC-C

• InteliSys GSC-C

• InteliGen NT BaseBox

• InteliGen NTC BaseBox

• InteliSys GAS

• InteliSys NTC BaseBox

• InteliSys NTC Hybrid

• InteliMains NTC BaseBox

• InteliDrive Mobile from SW       version 2.6.0

• Complete access to all control and monitoring functions

• More information in less time

• Fast and intuitive navigation

• TRENDS monitoring screen

• USB flash disk file storage (export/import trends, history,      archive of controller and InteliVision 8 firmware to USB stick)

• Quick auto login with USB stick

• User’s picture import

• Easy Drag and Drop screen configuration in graphical      editor

• ADAPTIVE and COLOUR alarm list

• Configurable soft keys buttons:

• Fast skip to any screen

• Binary signal activation – S/R button / toggle button / pulse       generator

• Association to various Genset commands

• Large History screen

• Support of Tier 4 Final icons

• Communication connection via of RS232/485 and CAN bus

• Same cut profile as IS-Display (simple replacement of monochrome      displays)

• Mounting screw available at the rear face of InteliVision 8 to mount      a compatible controller

• Direct connection to the controller (converters are not needed)

• Designed to be mounted in both monitoring and engine room

• Windows CE operating system

• Operating temperature: –20 to + 70°C

• Face is sealed to IP65

• EMC, climatic and mechanical tests

• CE, UL, cUL certification
