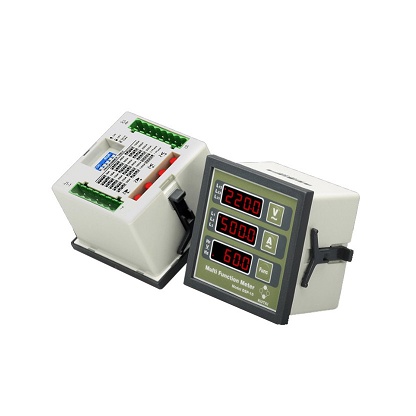

Kutai DSP-10 DSP10 Generator Genset Display Module Controller

Kutai Genset Multi-Function Display Module

Genuine Kutai DSP10 DSP-10 Generator Display Module with wholesale price.

Kutai DSP-10 Percent Power Meter Brochure.pdf

The DSP-10 Kutai Genset Multi-Function Display Congtroller Module is an universal compact integrated digital displayer. It can be installed solely or joint with GCU-10.

Features:

First and only Multi-function display module specially designed for generator set

Three sets four digits high illumination LED suitable for outdoor use Microprocessor based design

Full phase AC voltage RMS value display

Full phase with load RMS value display

AC input frequency display

DC supply voltage display

Engine operating time display

All values can be programmed according to user's actual demand to be cyclic displayed

Compact, Anti-shock, easy installation

DIN rail terminal for easy connection

Four adjustable voltage and current push buttons

Five DIP switches for specification setting

Specifications:

DC Supply   DC Voltage 9 to 36 Vdc (12V/24V)

Alternator Input Range    AC Voltage 10 to 500 Vac

Frequency 50/60 Hz

Power Consumption 2 watts

Rated CT Capacity    Above 2.5 VA

CT Secondary Ratio  5A

Max. CT Rated    3000A / 5A

Environment

Operating Temperature   -20 to +60 °C

Storage Temperature       -35 to +85 °C

Relative Humidity      Max. 90%
