Kutai DSP-52 DSP52 CANBUS J1939 Genset Generator Reader

Kutai CAN Bus J1939 Genset Reader

Genuine Kutai DSP52 DSP-52 Generator Reader with wholesale price.

Kutai DSP-52 Canbus Reader.pdf

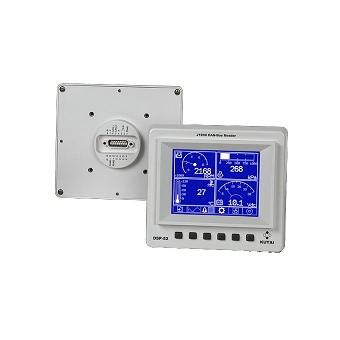

The Kutai DSP-52 is a CAN Bus J1939 Reader. Equipped with large LCD display screen with user friendly graphical display and event log. Connection via RS485 with IP67 water resistance, suitable for multi application and best solution for obtaining engine data from generators that are equipped with CAN Bus J1939 ECU (Engine Control Unit).

Features:

5.7-inch large single color LCD with graphical display

Adjustable LCD brightness

Hidden multi-function menu

Single click to return to graphical display menu

4 pages display arrangement with total of 16 graphical display readouts and 4 readouts per page

8 item data tracking and curve graph displayed

Records up to 100 failure code history (ADTC)

1 failure warning dry contactor output

Push button and warning beeper

RS-485 port for system remote access

Remote communication with PC (Use DSP-52 Remote Software)

J1939 database display page (67 items)

Provide one DB-15 waterproof connector (Length 1.2M)

Application: Engine, Genset, Car, Boat
