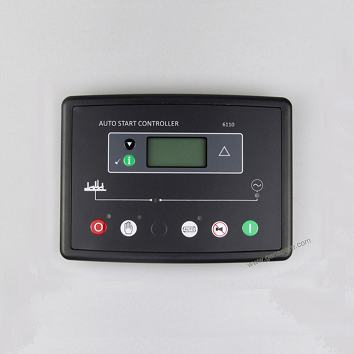

DSE DSE6110 Generator Automatic Controller 6110

AUTO START CONTROL MODULES

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

How to choose a suitable Generator Automatic Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

The Deep Sea 6110 Autmatic Generator Controller is an Automatic Start Control Module and the Deep Sea DSE6120 Genset Controller is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single gen-set applications. Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, Deep Sea 6110 DSE Controller will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

DSE 6110 GENERATOR CONTROLLER offer electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.

6110 DSE Controller can be easily configured using the DSE Configuration Suite PC software.

Selected front panel editing is also available.

KEY FEATURES of DSE DSE6110 Generator Controller

• Back-lit text LCD display

• Front panel editing

• LED and LCD alarm indication

• Power Save mode

• CAN and Magnetic Pick-up/Alt. versions available (specify on ordering)

• PC and front panel configuration

• 6 Digital inputs

• 3 Analogue inputs

• 6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6 configurable on CAN version)

• Configurable timers and alarms

• Alternative configuration

• Event Log (10)

• Remote Start input

• 3 Phase generator monitoring

• Current Monitoring and protection

• 3 Phase Mains (Utility) monitoring (DSE6120 only)

• Test button (DSE6120 only)

• Battery voltage monitoring

• Engine pre-heat

• Hours counter

• Comprehensive shutdown or warning on fault condition

KEY BENEFITS of Deep Sea DSE6110 Automatic Controller

• Automatically transfers between mains (utility) and generator power (DSE6120 only)

• Hours counter provides accurate information for monitoring and maintenance periods

• User-friendly set-up and button layout

• Multiple engine parameters are monitored simultaneously

• Module can be configured to suit individual applications

• Compatible with a wide range of CAN engines

• Tier 4 engine support

• Uses DSE Configuration Suite PC software for simplified configuration

• IP65 rating (with optional gasket) offers increased resistance to water ingress

• Licence-free PC software
