DSE Deep Sea 7220 AMF Generator Controller DSE7220

DSE7220 Generator Controller

DEEP SEA 7220 Controller



introduction

Warranty: 1 Year

Gross Weight: 1 kg

Stock Status: In stock

Generator Type: Diesel or Gasoline

Part No. : DSE7220

Replaced Brand: Deep Sea / DSE

Controller Type: Generator AMF Controller

Software: Compatible with DSE

Function: DSE 7220 Controller

Usage: Deep Sea Controller DSE7220

Compatible with: DSE Controller DSE7220

Product Name: Deep Sea 7220 Genset Controller

Language: English, Spanish, Portuguese, Russian, French, German, Chinese and etc.

Compatible Gensets: Cummins,Perkins,Deutz,Caterpillar, Aksa, Volve, Marelli,

Mecc Alte, Marathon, WeiChai, ShangChai, YANAN, Kipor and many more Brands

DSE Deep Sea 7220 AMF Generator Controller DSE7220



DSE7210,7220 Product Specification Download.pdf



AUTO START CONTROL MODULES

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.



How to choose a suitable Generator AMF Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7220, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7220, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7220, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

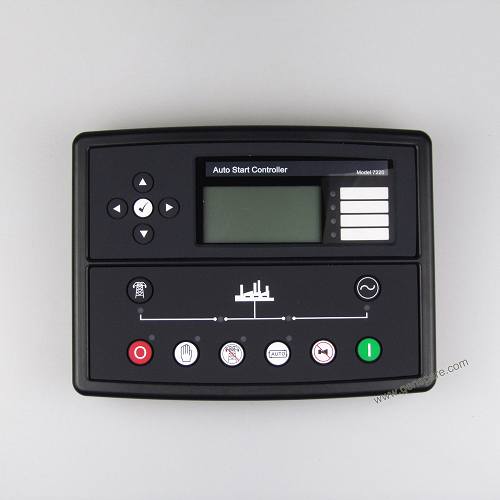

The DSE 7220 AMF Generator Controller is an Auto Start Control Module and the Deep Sea DSE7220 Genset Controller is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. The deep sea 7220 Generator Controller will also monitor the mains (utility) supply.

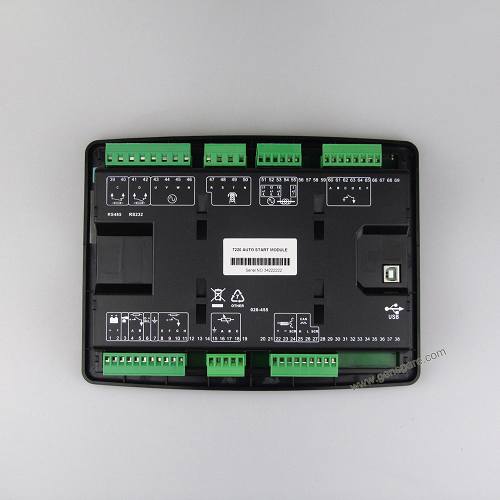

Generator Controller Deep Sea DSE7220 are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.

Enhanced features include a real time clock for improved event monitoring, the ability to display information in any language and a clear 4-line text display.

The modules can be easily configured using the DSE Configuration Suite PC software.

Selected front panel editing is also available.



KEY FEATURES of Generator Controller DSE 7220

• 4-Line back- lit LCD text display

• Five key menu navigation

• Front panel editing with PIN protection

• LED and LCD alarm indication

• Customisable status screens

• Power save mode

• 7 configurable inputs

• 8 configurable outputs

• Configurable timers and alarms

• 3 configurable maintenance alarms

• Multiple date and time scheduler

• Configurable event log (100)

• Control logic facilities

• Easy access diagnostic page

• CAN and Magnetic Pick-up/Alt. sensing

• Fuel usage monitor and low fuel alarms

• Charge alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• Engine exerciser

• “Protections disabled” feature

• KW Overload protection

• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)

• Load switching (load shedding and dummy load outputs)

• True dual mutual standby with load balancing timer (Deep Sea DSE7220 Genset Controller only)

• USB connectivity

• Backed-up real-time clock

• Fully configurable via DSE Configuration Suite PC software

• Configurable display languages

• Remote SCADA monitoring via DSE Configuration Suite PC software



KEY BENEFITS of Deep Sea Generator Controller 7220

• 132 x 64 pixel ratio display for clarity

• Real-time clock provides accurate event logging

• Multiple date and time scheduler

• Set maintenance periods can be configured to maintain optimum engine performance

• Licence-free PC software

• IP65 rating (with supplied gasket) offers increased resistance to water ingress
