DSE Deep Sea 7310 Auto Generator Controller DSE7310

DSE7310, DSE7320 Product Specification Download.pdf

AUTO START CONTROL MODULES

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

How to choose a suitable Generator Auto Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

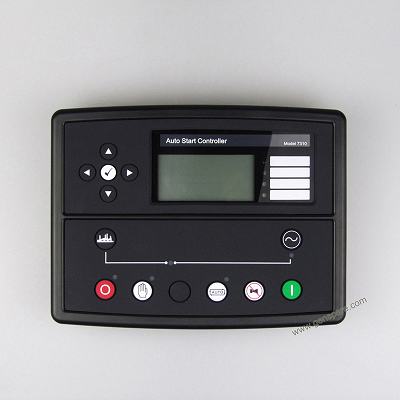

The Deep Sea 7310 Auto Generator Controller is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).

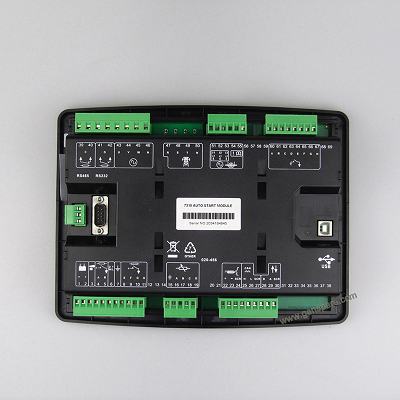

The DSE7310 Deep Sea Generator Controller will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion.

Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.

The extensive list of features includes enhanced event and performance monitoring, remote communications and dual mutual standby (DSE 7310 Generator Controller only) to reduce engine wear.

DSE7310 Deep Sea Controller can be easily configured using the DSE Configuration Suite PC software.

Selected front panel editing is also available.

KEY FEATURES of DSE7310 DSE Controller

• 4-Line back-lit LCD text display

• Five key menu navigation

• Front panel editing with PIN protection

• LED and LCD alarm indication

• Customisable status screens

• Power save mode

• Support for up to three remote display units

• 9 configurable inputs

• 8 configurable outputs

• Flexible sender inputs

• Configurable timers and alarms

• 3 configurable maintenance alarms

• Multiple date and time scheduler

• Configurable event log (250)

• Control logic facilities

• Easy access diagnostic page

• CAN and Magnetic Pick-up/Alt. sensing

• Fuel usage monitor and low fuel alarms

• Charge alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• Engine exerciser

• “Protections disabled” feature

• kW overload protection

• Reverse power protection

• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)

• Load switching (load shedding and dummy load outputs)

• Unbalanced load protection

• Independent Earth Fault trip

• True dual mutual standby with load balancing timer

• USB connectivity

• Backed up real time clock

• Fully configurable via DSE Configuration Suite PC software

• Configurable display languages

• Remote SCADA monitoring via DSE Configuration Suite PC software

• User selectable RS232 and RS485 communications

• Configurable Gencomm pages

• AdvancedSMS messaging (additional external modem required)

• Start & stop capability via SMS messaging

• Additional display screens to help with modem diagnostics

• DSENet® expansion compatible

• Integral PLC editor

KEY BENEFITS of DSE 7310 Controller

• 132 x 64 pixel ratio display for clarity

• Real-time clock provides accurate event logging

• Multiple date and time scheduler

• Set maintenance periods can be configured to maintain optimum engine performance

• Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost

• Modules can be integrated into building management systems (BMS)

• Increased input and output expansion capability via DSENet®

• Licence-free PC software

• IP65 rating (with supplied gasket) offers increased resistance to water ingress

• PLC editor allows user configurable functions to meet specific application requirements
