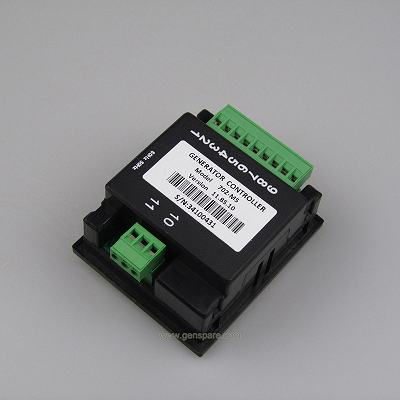

DEEP SEA 702 Controller
DSE Genset Controller DSE702MS
Warranty: 1 Year
Gross Weight: 0.2 kgs
Stock Status: In stock
Generator Type: Diesel or Gasoline
Part No. : DSE 702 , DSE702MS
Replaced Brand: Deep Sea / DSE
Function: DSE 702 Controller
Usage: Deep Sea DSE702MS Controller
Compatible with: DSE DSE702MS Genset Controller
Product Name: Deep Sea Genset Controller DSE702MS
Language: English
Compatible Gensets: Cummins,Perkins,Deutz,Caterpillar, Aksa, Volve, Marelli, Mecc Alte, Marathon, WeiChai, ShangChai, YANAN, Kipor and many more Brands
DSE Deep Sea 702MS 702 Genset Controller DSE702MS
GENERATOR MANUAL START CONTROL MODULES
High quality replacement model for DSE 702 Genset Controller with reasonable price!
Manual Start Module: DSE702MS
Auto Start Module: DSE702AS
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
How to choose a suitable Generator Controller?
1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)
2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)
3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)
4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)
5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM
6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

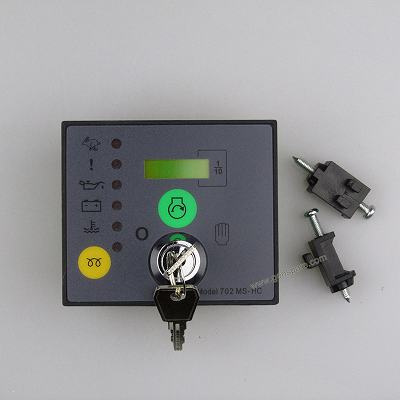

The Deep Sea 702 DSE Genset controller is available in Manual and Auto Start versions, offering an excellent range of engine monitoring and protection features. The module offers inputs to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input. Auto Start versions also include an input option for a start signal from a remote location.
When the module detects any of the above faults it will light the warning LED on the front panel.
The Deep Sea DSE 702MS Genset Controller also has the capability to monitor battery charging by utilizing the WL terminal on the charge alternator. On detecting a battery charging fault, it will light the warning LED on the front panel.
KEY FEATURES of Deep Sea Controller DSE702MS
• Manual start and remote start versions
• Remote start input (auto start version only)
• Auxiliary shutdown input (Manual start version only)
• Engine monitoring and protection
• LED indication
• Engine pre-heat
• Front panel mounting
KEY BENEFITS for DSE 702MS Controller
• Multiple engine parameters are monitored simultaneously
DC PROVIDE of Genset Controller DSE 702
CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous
CRANKING DropOUTS
Able to survive 0 V for 50 mS, providing provide was at least 10 V before dropout and provide recovers to 5 V. This is achieved without the need for internal batteries.
OUTPUTS
START
Solid state 1.2 A negative grounding terminal
RUN
Solid state 1.2 A negative grounding terminal
PRE-HEAT
Solid state 1.2 A negative grounding terminal
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
DIMENSIONS
DSE702 OVERALL
72 mm x 72 mm x 38 mm
2.8” x 2.8” x 1.5”
Excludes key switch
DSE702 PANEL CUT-OUT
68 mm x 68 mm
2.7” x 2.7”
MAXIMUM PANEL THICKNESS
8 mm
